7. Stabilization of spectra
The gain 'stabilization' of gamma spectra is a procedure in which every measured (multichannel) spectrum is shifted in such a way, that the channel axis (the X axis) is converted in an axis displaying gamma energies. The conversion, or 'mapping' function should be such that all peaks present in the spectrum end up at the corresponding gamma energy. For instance, the 40K peak should pop up at 1460 keV, the highest 232Th peak should be found at about 2620 keV.
7.1 Real life data
However, the problem in "real life" data is that the positions of the peaks depends on several, detector- and environment-driven factors. The high voltage applied to the detector determines the amplification of a system and thereby the position of the peaks in a MCA spectrum. At the same time, the gain is determined by the actual temperature of the detector system. Improper or not too well designed multichannel analysers may even lead to non-linear gain issues, leading to abnormal peak shifts in the measured spectrum. All these factors should be taken care of in the stabilization algorithm.

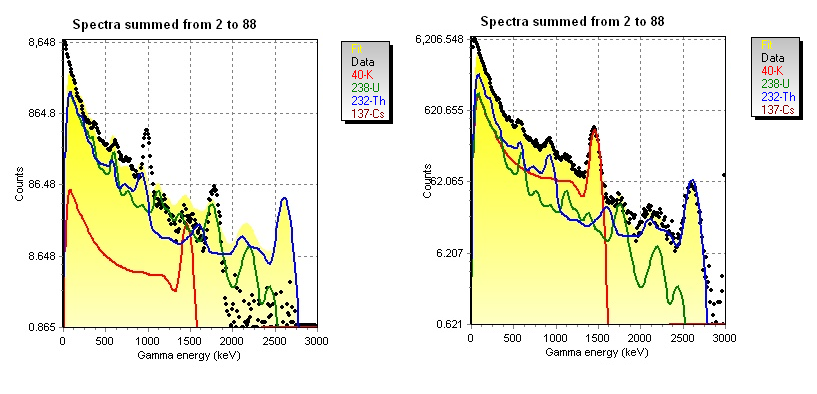

Figure 1: improper calibration. The measured spectrum (black dots) has peaks at wrong energy positions.
Figure 2: proper calibration. The peaks of the measured spectrum are now at the right energies.
In general one can separate the spectral shift compared to a fixed energy axis into a "static" part (a part depending on type of MCA used, high voltage applied, other system settings) and a "dynamic" part.
The static part of the stabilization is determined in the calibration of a detector. During calibration, both a zero offset and alinearity of the detector-MCA system is determined.
The 'dynamic' part stems primarily from the detector temperature, which normally is changing over time (during a survey). The dynamic part is therefore a-priori unknown, and must be determined again for each individual spectrum.
7.2 The Gamman gain stabilization
In Gamman, gain stabilization is done by translating each and every MCA spectrum in an input file, to an energy-stabilized spectrum. This is done by applying a mapping function Ey,1= M(channeli), in which M is an nth order polynomial function mapping each channel number i to a gamma energy
The constants ai in the polynomial mapping function M are continuously adapted to the potentially varying gain stabilization of the detector system. In general, only the first order factor a1 varies with temperature-induced gain. The variation of a1 is traced by inspecting each individual spectrum and by adjusting a1, if needed.
The stabilization algorithm uses the fact that the nuclides contributing to the spectrum are known a-priori. It uses data from a calibration file of your detector system to find the gain stabilization for a given data set. This is done by finding the optimum fit while adjusting the polynomial constants ai. The optimum fit is found whenever the gain stabilization is proper.
When does it happen?
The gain stabilization of your data is done while the data is imported. The Gamman output (GSF files) contains gain-stabilized spectra.
7.3 Precautions
There are two situations that may lead to strange or erronous results of the stabilization algorithm:
1. Unknown radioactive substances are present in your data set;
2. Improper or outdated calibration data for your detector is used for stabilization.
Ad. 1. Radiation from nuclides that are not part of the calibration information for your detector, will lead to peaks at unknown positions. In that situation, the algorithm will not find an optimum fit and may introduce false gain stabilization. For instance, if a Na22 source would be present in your measurement area, peaks would show up at 511 and1120 keV. These peaks are not found in the calibration information, and the software will most likely try to translate the 1120 peak to the position of the 40K peak (at 1460 keV). This situation can be solved by acquiring a calibration set including the wanted nuclide.
Ad. 2. Detectors will degrade over time. Their peak resolution may become worse and/or peaks will be smeared out because of crystal cracks and other damage. Or, even worse, complete detectors or MCA hardware may be replaced. This will lead to a system having a different set of static gain stabilization parameters than present in the Gamman calibration files. Such a situation may lead to improper gain stabilization. It is always advisable to do a regular recalibration of your detector system.
