MDC-30x cable
| Communication protocol | Ethernet |
|---|---|
| Last spectrometer | 2017T043.024 |
| Voltage protection |
|
| Connector A | RJ-45 |
| Connector B | None (flying leads) |
| Connector C | Lumberg 0322-08 |
| Dust caps | Lumberg 0381, Lumberg 038199 (no chain) or Lumberg 038799 (plastic) |

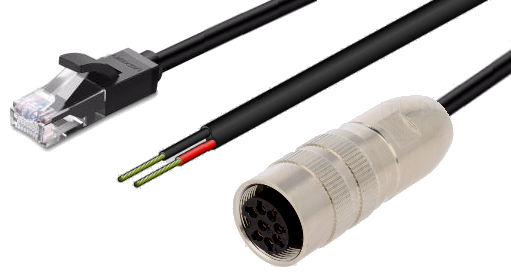

The MDC-300 communication cable can be used to connect a spectrometer directly to both a computer and a power source. Note that some cables (labelled MDC-300) are equipped with an under- and overvoltage protection circuit. This circuit protects the hardware against voltages which are too high (up to 60V) and against reverse polarity issues. The MDC-301 cable does not have any voltage protection. Aside from the label, the MDC-300 and MDC-301 cables have identical appearance.
Variants
| MDC-300 | Includes electronics which protect the spectrometer against voltages which are too low (including negative voltages caused by reversed polarity) and voltages which are too high. |
|---|---|
| MDC-301 | Does not include any voltage protection. |
Connection scheme

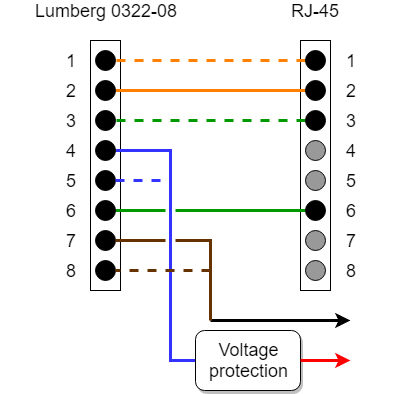

The connection scheme for the MDC-300 cable is shown below. The MDC-301 cable has the same connection scheme, but is lacking the voltage protection circuit. The voltage protection circuit in the cable prevents the power lines from being inspected using a multimeter.
.png?inst-v=aa97099e-a3bc-4268-b635-a5f2a5da9681)
Pin numbering
| RJ-45 |
| Lumberg 0322-08 Note: Pin numbering as seen from the solder side. |
Pin description (Lumberg connector)
| # | Description | Wire color |
|---|---|---|
| 1 | Rx+ | Orange / white |
| 2 | Rx- | Orange |
| 3 | Tx+ | Green / white |
| 4 | Power | Blue |
| 5 | Power | Blue / white |
| 6 | Tx- | Green |
| 7 | Ground | Brown / white |
| 8 | Ground | Brown |
Datasheets
- Lumberg 0322 connector series.pdf
- Lumberg 0381 dust cap.pdf
- Lumberg 038199 dust cap.pdf
- Lumberg 038799 dust cap.pdf
