Appearance

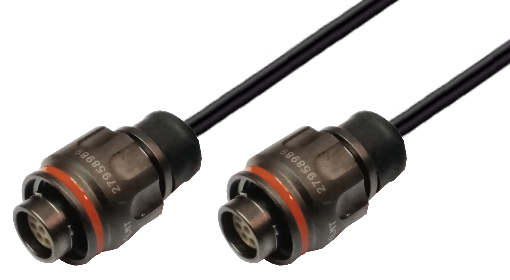

MDC-60x cable
| Communication protocol | None |
|---|---|
| Last spectrometer | Active |
| Voltage protection | No voltage protection |
| Connector A | Lemo FGT.1M.308.XLMT |
| Connector B | Lemo FGT.1M.308.XLMT |
| Dust caps | Lemo BGF.1M.100.CAV or BGF.1M.100.XAV (note: this dust cap protects the connector on the cable) |
The MDC-600 communication cables can be used to connect a PUCK-400(-RTK) and a spectrometer. Note that the cables are not equipped with an under- and overvoltage protection circuit and should therefore only be used in a setup where an MDC cable with power protection is used to power the PUCK. The MDC-600 cable connects power and ethernet from the PUCK to the spectrometer.
The Lemo FGT.1M.308.XLMT connector requires special tools to (dis)assemble. Please contact Medusa if the cable needs servicing.
Variants
| MDC-600 | Can be used to connect the PUCK-400 to the spectrometer |
|---|
Pin numbering
 | Lemo FGT.1M.308.XLMT Note: Pin numbering as seen from the back side. |
|---|
Pin description (Lemo connector)
| # | Description | Wire color |
|---|---|---|
| 1 | Power | Red and blue |
| 2 | Debugging only | Brown / white |
| 3 | Debugging only | Blue / white |
| 4 | Tx+ | Orange / white |
| 5 | Tx- | Orange |
| 6 | Rx+ | Green / white |
| 7 | Rx- | Green |
| 8 | Ground | Black and brown |
