MSB-101 mounting brackets

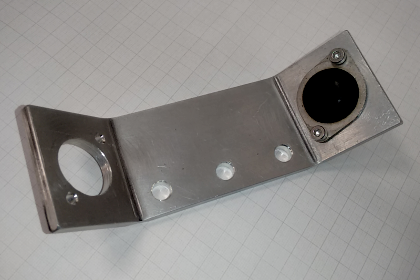

These MSB-100 brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicle. It can be used with spectrometers numbered up to 2017T043.024. Other mounting options can be found here.
For mounting the rubbers onto a vehicle, it is recommended to use stainless steel M4 bolts with a 16mm (nylon) spacer between rubber and bolt. A usable spacer is produced by duratool, article number DT000343. Make sure to use a bolt with a wide head, or use an additional washer.
Latest code | 2017T043.024 | |
---|---|---|

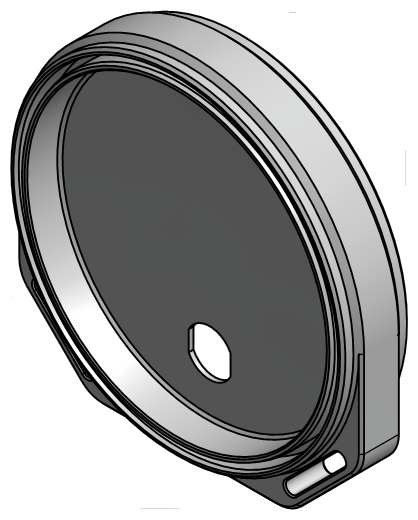

Aluminium cover | ||

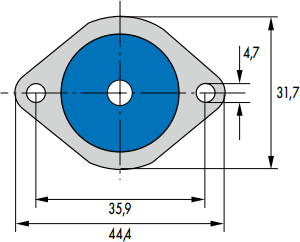

Rubbers | 'Instrument' mounts | |
Drawing |
