4. Technical data
These pages contain info on the of gammaray spectrometers built by Medusa. The table below summarizes the components that are used in these systems.
| Sensor type | Latest code | Housing | MCA | Cables | Pic |
|---|---|---|---|---|---|
| MS-4000 | |||||
| MS-4000 | 2016-T029.010 | Alu box | vMCA |
| |
| MS-4000 | 2017-T039.012 | Alu box | mMCA V2 | MDC-40x | |
| MS-2000 | |||||
| MS-2000 | 2016-T206.001 | Alu tube | Base527 | MDC-200 |
|
| MS-2000 | 2016-T037.007 | Carbon tube V1 120 mm | Base527 | MDC-200 |
|
| MS-2000 | 2017-T043.024 | Carbon tube V1 120 mm | mMCA V1 | MDC-300 |
|
| MS-2000 | Active | Carbon tube V2 120 mm | mMCA V2 | MDC-40x |
|
| MS-1200 | |||||
| MS-1200 | 2014-T010.003 | Alu box | vMCA |
| |
| MS-1200 | 2016-T024.004 | Alu box | Base527 | MDC-100 | |
| MS-1200 | Active | Carbon tube V2 | mMCA V2 | MDC-40x | |
MS-1000 | |||||
| MS-1000 | Carbon tube V1 | mMCA V1 | MDC-300 | ||
| MS-1000 | Carbon tube V2 120 mm | mMCA V2 | MDC-40x MDC-50x |
| |
| MS-1000 | Carbon tube V3 100 mm | mMCA V2 | MDC-40x MDC-50x | ||
| MS-700 | |||||
| MS-700 | Carbon tube V2 120 mm | mMCA V2 | MDC-40x MDC-50x |
| |
| MS-700 | Active | Carbon tube V3 100 mm | mMCA V2 | MDC-40x MDC-50x | |

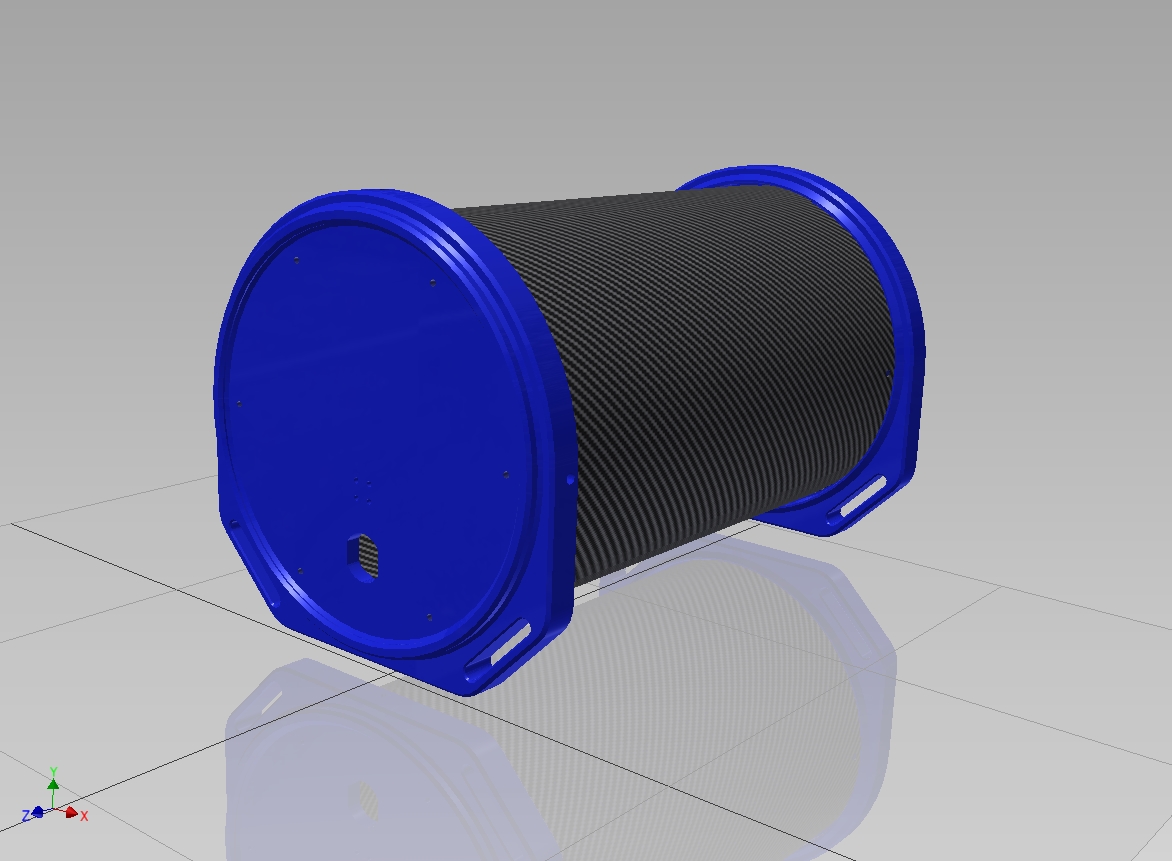

| MS-350 | |||||
| MS-350 | Carbon tube V2 120 mm | mMCA V2 | MDC-40x MDC-50x |
| |
| MS-350 | Active | Carbon tube V3 100 mm | mMCA V2 | MDC-40x MDC-50x |
