Demo Data

This page contains the data that is described in the scientific publication Optimizing gamma-ray spectrometers for UAV-borne surveys with geophysical applications published in the journal of environmental radioactivity: https://doi.org/10.1016/j.jenvrad.2021.106717

The article is an open-access article and, therefore, accessible without a license.
The table below contains the data used in this publication in a CSV format. The table below

This article compares the results of three different sizes of Medusa gamma-ray spectrometers mounted on a drone with each other and with a ground-borne measurement in an agricultural field. The latter is chosen because agricultural fields have a relatively low radionuclide concentration, and therefore, the methodologies used in the article will also work in environments where the soil contains higher radionuclide concentrations.

The article concludes that you can use a detector as small as the MS-350 for environmental mapping of radionuclide concentrations in a field if you optimize the data processing and map-making process by using Full Spectrum Analysis (FSA) and Kriging.

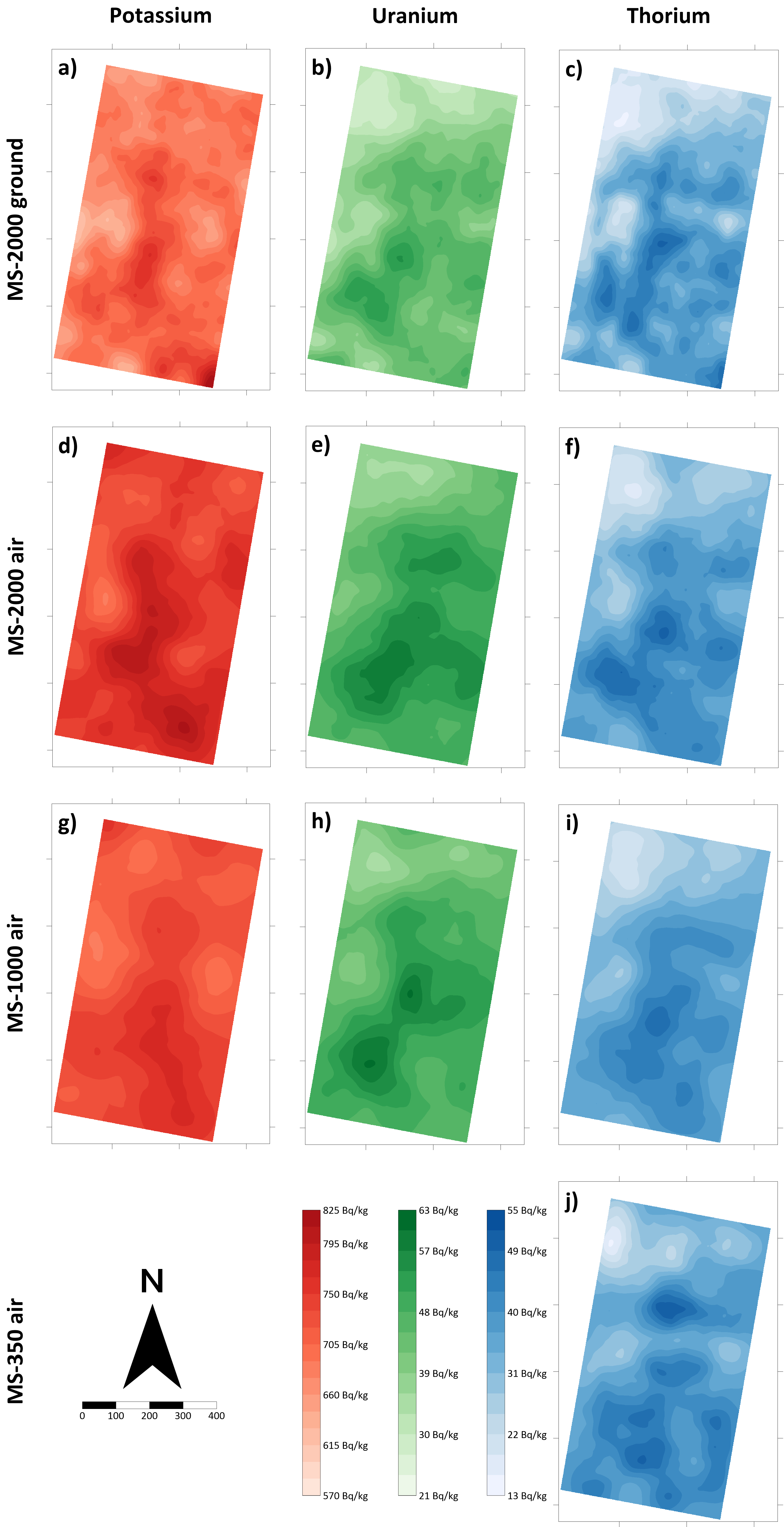

Fig. 7.png

CSV Data

Description

File

Measurement height

MS-2000 ground-borne data

Demo_data_MS2000_0.8m-Detector_Comparison.csv.csv

0.8 m

MS-2000 UAV-borne data

Demo_data_MS2000_20m-Detector_Comparison.csv.csv

20 m

MS-1000 UAV-borne data

Demo_data_MS1000_20m-Detector_Comparison.csv

20 m

MS-350 UAV-borne data

Demo_data_MS350_20m-Detector_Comparison.csv

20 m

Header description

The CSV files in the table above contain a single data point in each row. The header gives a description of the data, and the table below gives a detailed description of the values present in the CSV files.

Name

Description

Date

Date in day/month/year format

Time

Time in hour:minute:second format

X_GPS

X-position in WGS-84 coordinate system

Y_GPS

X-position in WGS-84 coordinate system

Z_GPS

GPS height of the measurement

Latitude_GPS

Latitude coordinate of the measured value

Longitude_GPS

Longitude coordinate of the measured value

Total_counts

Total counts present in the spectrum (counts)

Cosmics

Counts in the cosmic channel (energy > 3 MeV)

40-K

Radionuclide concentration of potassium-40 in Bq/kg

238-U

Radionuclide concentration of uranium-238 in Bq/kg

232-Th

Radionuclide concentration of thorium-232 in Bq/kg

S 40-K

Uncertainty in the radionuclide concentration of potassium-40 in Bq/kg

S 238-U

Uncertainty in the radionuclide concentration of uranium-40 in Bq/kg

S 232-Th

Uncertainty in the radionuclide concentration of thorium-40 in Bq/kg

Height

Height of the measurement point as measured by the on-board lidar
(only present in the UAV datasets)
