|Communication protocol||Ethernet (PoE)|
|Connector B||Lumberg, 0332-08|
|Dust caps||Lumberg 0383, Lumberg 038399 (no chain) or Lumberg 038899 (plastic)|

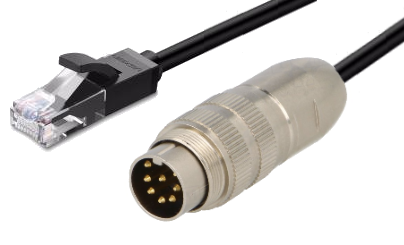

The MDC-200 communication cable is used with PoE (power over ethernet) spectrometers. Using this cable, the spectrometer can directly be connected to a computer or router which support PoE. When no PoE functionality is available, power needs to be required elsewhere. For this a PoE injector can be used, such as the Medusa PoE injector unit.
Both connectors share the same pin-out. That is, pin 1 of the Lumberg connector is connected to pin 1 of the RJ45 connector, etcetera. Note that pin 4 and pin 5 have the same function, but they are not connected. The same applies for pin 7 and 8.
|1||Rx+||Orange / white|
|3||Tx+||Green / white|
|5||DC+ (+48V)||Blue / white|
|7||DC- (ground)||Brown / white|
