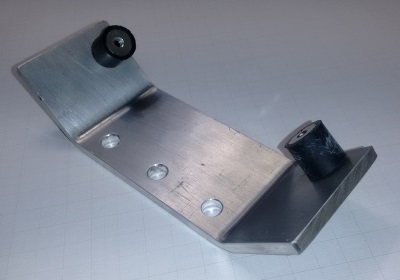

MSB-100 mounting brackets
These MSB-100 brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicle. It can be used with spectrometers numbered up to 2017T043.024. Other mounting options can be found here.
Note: The MSB-100 bracket is obsolete, it is preferred to use the MSB-101 mounting bracket instead.
| Latest code | 2017T043.024 | |
|---|---|---|
| Aluminium cover |
| |
| Rubbers |
| Circular mounts, type B The rubbers can be mounted onto the bracket using M4 x 8mm bolts. |
| Drawing | ||
