Review and download
Reviewing and Downloading Data
The Review project page lets you inspect recorded survey data after a measurement. Unlike the Survey page, it has no live GPS updates and does not support taking new samples or drawing boundaries.
Opening a Project for Review

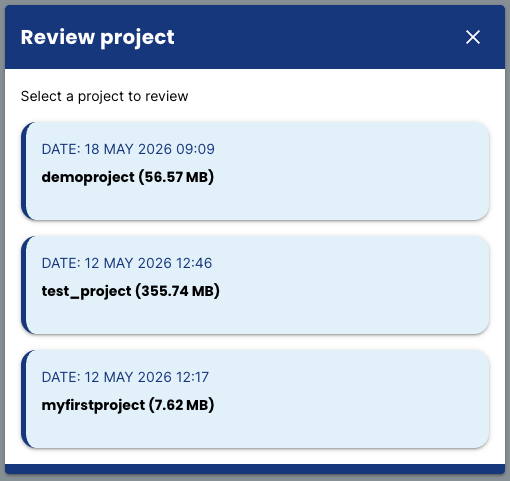

Click Review project in the sidebar or on the Dashboard. A dialog opens where you select which project to review. The name of the reviewed project is shown in the header below the page title.
Note: Reviewing a project does not change the active project. Data continues to be logged to the active project while you review.

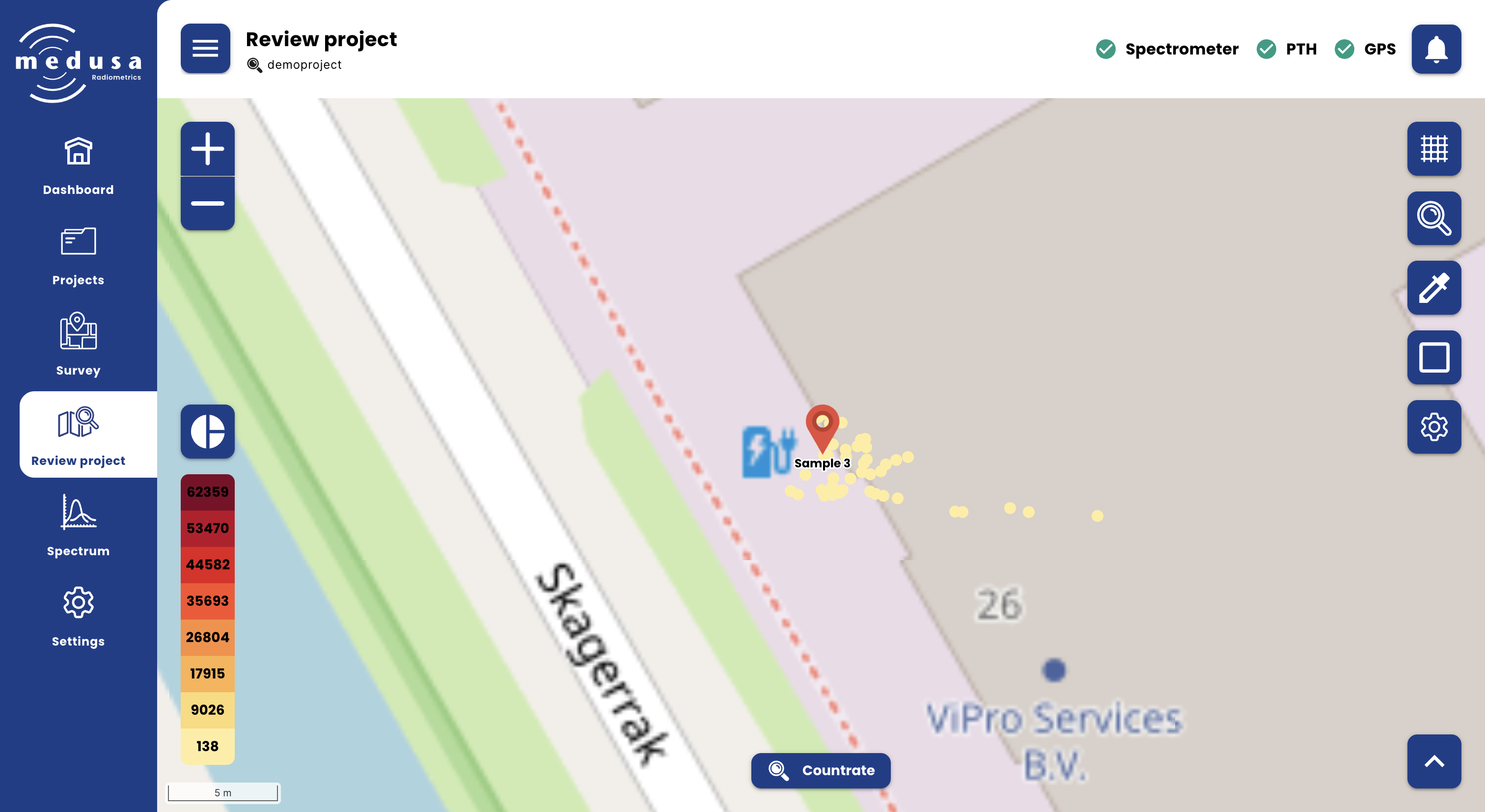

Exploring the Map
The map works the same way as on the Survey page, with two additions in the left toolbar.
Left Toolbar
Icon | Button | Description |
|---|---|---|
 | Colour scale range | Cycles through colour scale modes: Min-max → Standard deviation × 1 → Standard deviation × 2 |
The colour scale range modes reduce the influence of outliers on the colour scale. Use standard deviation mode when a small number of high or low values are compressing the rest of the data into a narrow colour range.
Choosing What to Display

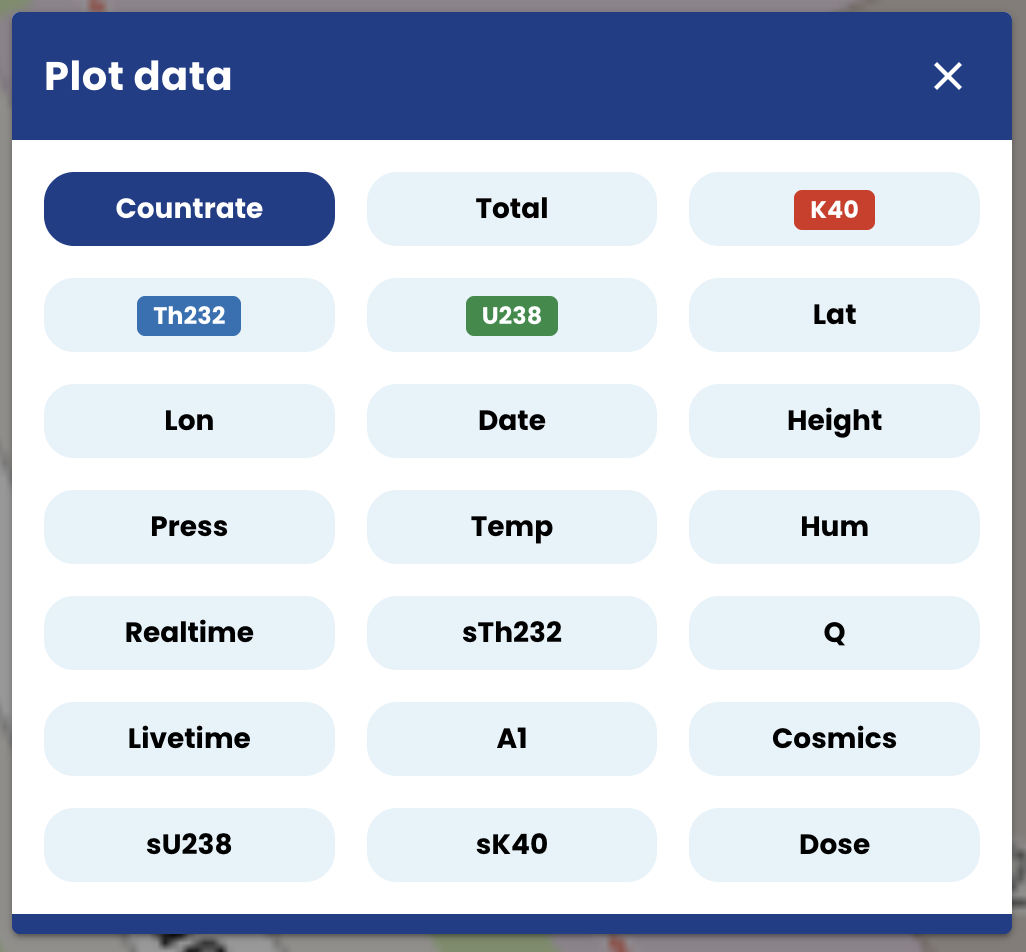

The parameter selector at the bottom of the map controls which data is plotted. Click it to open the list of available parameters.
Parameter | Description |
|---|---|
Countrate | Total gamma count rate in cps |
K40 | Activity concentration of ⁴⁰K in Bq/kg |
U238 | Activity concentration of ²³⁸U in Bq/kg |
Th232 | Activity concentration of ²³²Th in Bq/kg |
Cs137 | Activity concentration of ¹³⁷Cs in Bq/kg |
Dose rate | Dose rate in µGy/h |
Sample Locations, Samples, and Boundaries
The Sample locations, Samples, and Boundary panels work the same as on the Survey page. The only difference is that taking new samples and drawing new boundaries is not available — both require a live GPS position.
Sample locations can still be calculated, uploaded, and deleted.

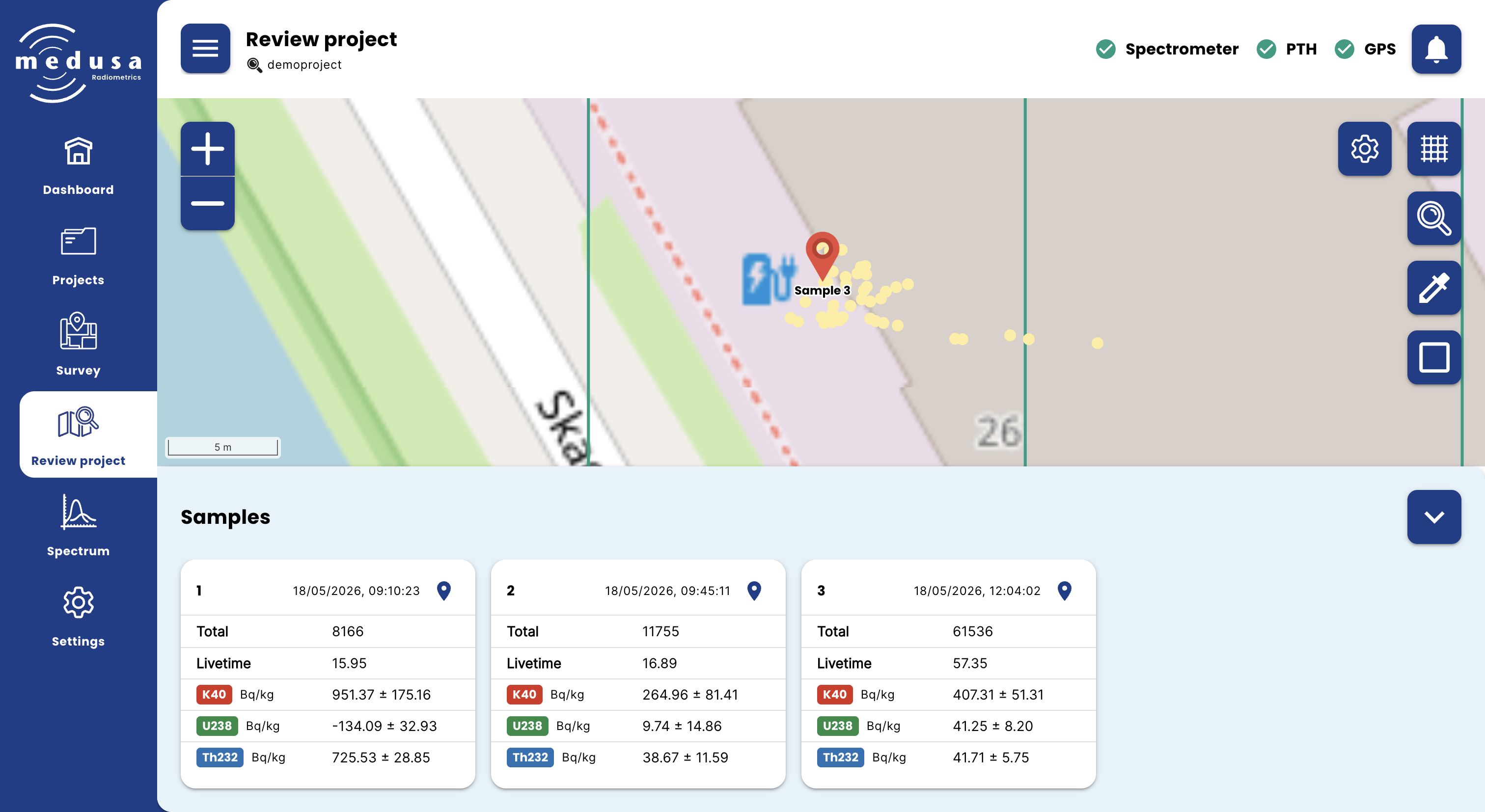

The Samples Table
If the project contains samples, a button in the bottom right of the map expands a table below the map listing all samples in the project.
Field | Description |
|---|---|
Number | The sample index |
Date / time | The date and time the sample was recorded |
Location pin | Click to centre the map on this sample |
Total | Total counts in the sample spectrum |
Livetime | The live measurement time in seconds |
Nuclides | Activity concentration of each nuclide that was active at the time of sampling (Bq/kg ± uncertainty). Which nuclides appear depends on the active nuclides configured under Settings → Sensors → Spectral at the moment the sample was taken. |
Downloading a Project
Downloading is done from the Projects page. See Project Management — Downloading a Project for a full description of the available file types and the download process.
