Wifi

Settings — WiFi

The WiFi settings section manages the detector's wireless network connections. Navigate to Settings → WiFi to open it.

It is divided into two or three tabs depending on configuration: Detector WiFi, WiFi Settings, and — when external WiFi is enabled — External WiFi.

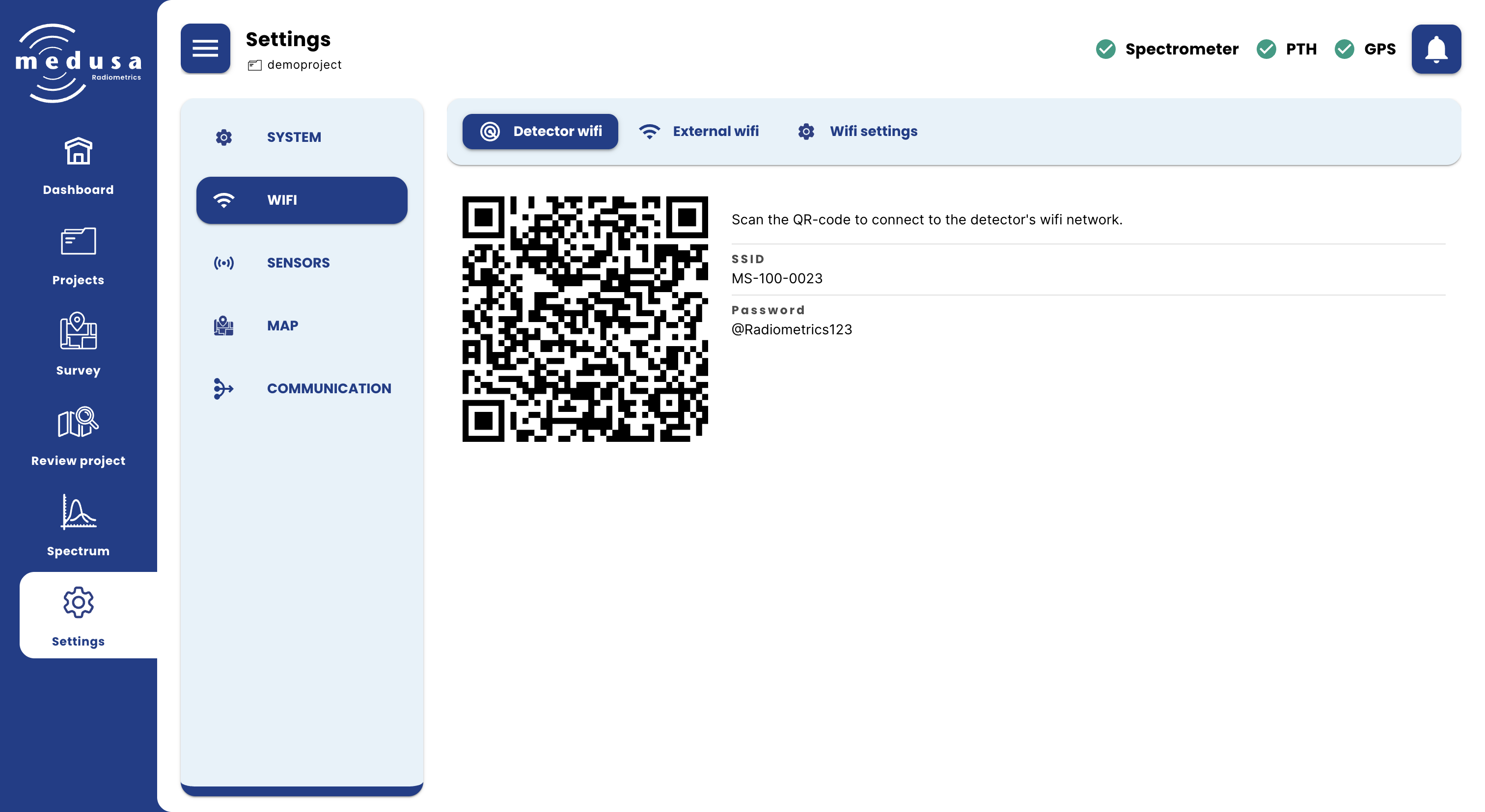

Detector WiFi

The Detector WiFi tab shows the credentials for the detector's own WiFi access point. If you need to disable the access point, contact Medusa support.

Scanning the QR code with a phone or tablet automatically connects to the detector's network. The SSID and password are set by Medusa and cannot be changed.

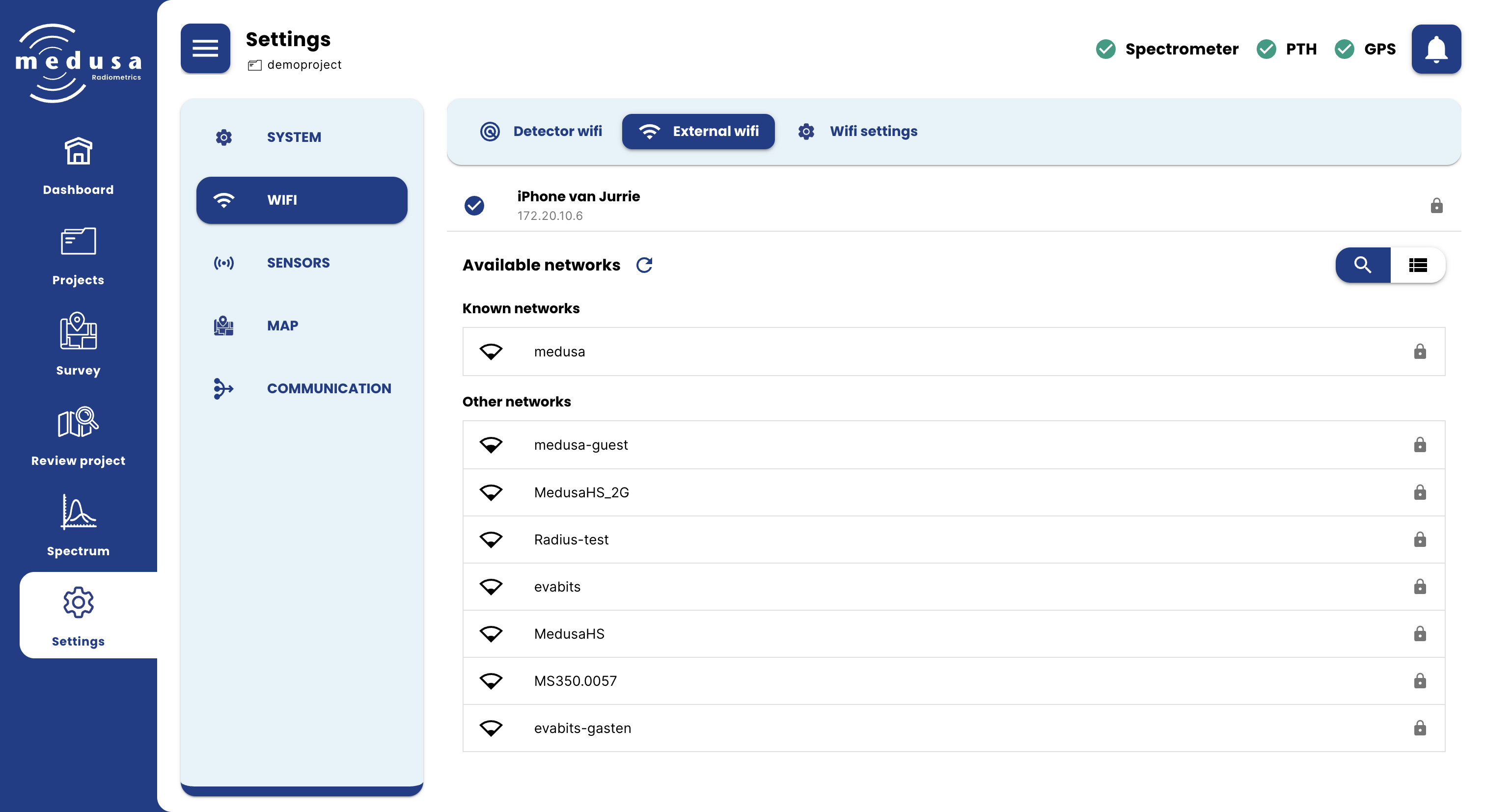

External WiFi

The External WiFi tab allows the detector to connect to an existing WiFi network, such as a router or a mobile hotspot. This makes the detector accessible via that network, so you can reach the mDOS interface without connecting directly to the detector's own access point.

Note: The External WiFi tab is only visible when Enable WiFi connection is turned on in the WiFi Settings tab.

The network list can be viewed in two ways using the toggle in the top right:

• Scan view — shows all networks currently in range, divided into Known networks (previously configured) and Other networks (all other visible networks)

• List view — shows all configured networks saved on the detector, regardless of whether they are currently in range. Each network can be removed with the delete button.

Clicking a network opens a dialog to connect to it. If the network is password-protected, a password field is shown. Open networks can be connected to directly.

The current connection status is shown at the top of the tab.

WiFi Settings

Click Save to apply changes.
