MSB-10x mounting brackets

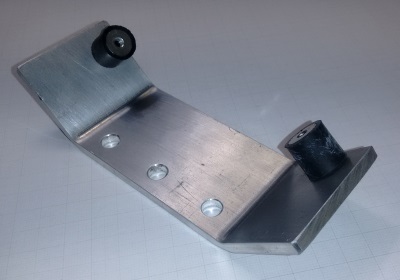

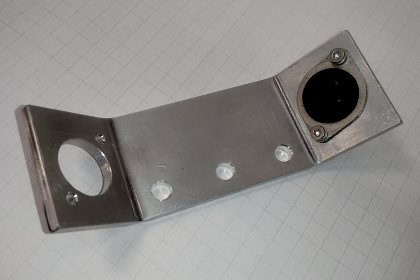

MSB-100 | MSB-101 |
---|---|
These MSB-10x brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicles.
Note: The MSB-10x brackets are obsolete, it is preferred to use the MSB-20x
MSB-100 | MSB-101 | |||
---|---|---|---|---|
Latest code | 2017T043.024 | 2017T043.024 | ||

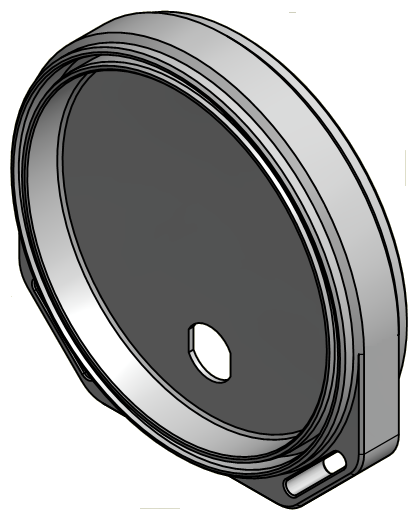

Aluminium cover | ||||

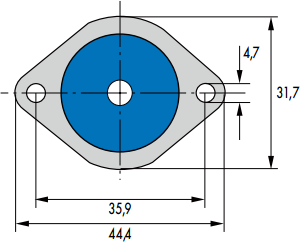

Rubbers | Circular mounts, type B The rubbers can be mounted onto the bracket using M4 x 8mm bolts. | 'Instrument' mounts Produced by Flexico Article number 039 18 023 40 shore | ||
Drawing | MSB-100.pdf |
