Settings

The Settings page displays the system information and settings Each block of settings is explained in the table below.

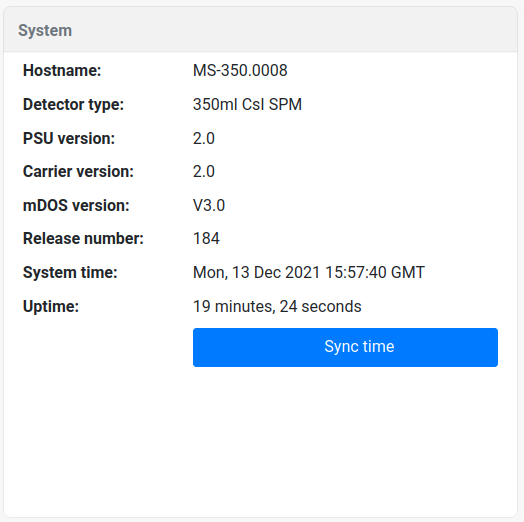

System information

This block contains system information, such as the serial number, hardware and software versions and systems (up)time.

	Entry	Description
	Hostname	The serial number of the spectrometer
	Detector type	Description of the scintillator crystal inside the spectrometer.
	PSU Version	The version of the Power Supply Unit (PSU) used in the system.
	Carrier version	The version of the microcontroller (carrier) used in the system.
	mDOS version	The version of the medusa Detector Operating System (mDOS) running on the device.
	Release number	The release version.
	System time	The current system time of the spectrometer.
	Uptime	The time the system has been switched on.
	Sync time	Button to update the spectrometers time to the time of the device used to access this page.

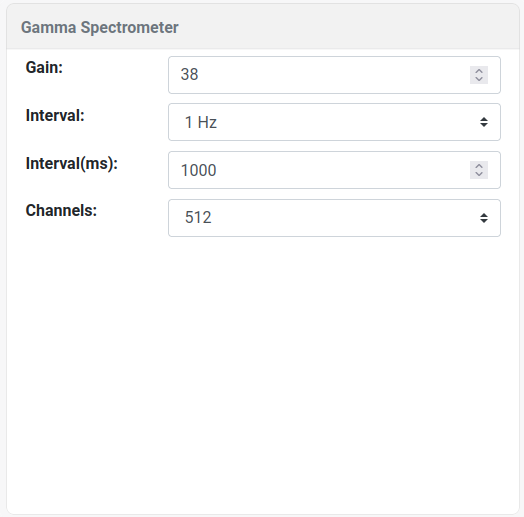

Gamma Spectrometer

The gamma-ray spectrometer recording parameters can be adjusted here. The spectrometers are carefully calibrated and configured before leaving the Medusa office, and changing the settings should only be done if there is a good reason to adjust these parameters.

Entry	Description	Notes
High voltage	The high voltage of the amplifier. The default value is unique for each detector.	Warning: Wrong high voltage or gain can lead to poor or incomplete spectra. Note: The high voltage is shown if the detector contains a photomultiplier. If the detector contains a silicon photomultiplier, this option is replaced by the gain option.
Gain	The gain voltage of the multichannel analyser. The default value is unique for each detector.
Interval	Measurements per second	Normally 1 Hz is sufficient for all applications. Short intervals will cause the storage of the detector to be filled much faster.
Interval (ms)	Custom measurement time
Channels	Number of channels in the measured spectrum	The default setting is 512 channels which are sufficient for most applications.
Spectrum inspection (optional)	Open a page in which the spectra of each individual crystal can be inspected.	This option is only present in spectrometer systems that contain multiple crystals.

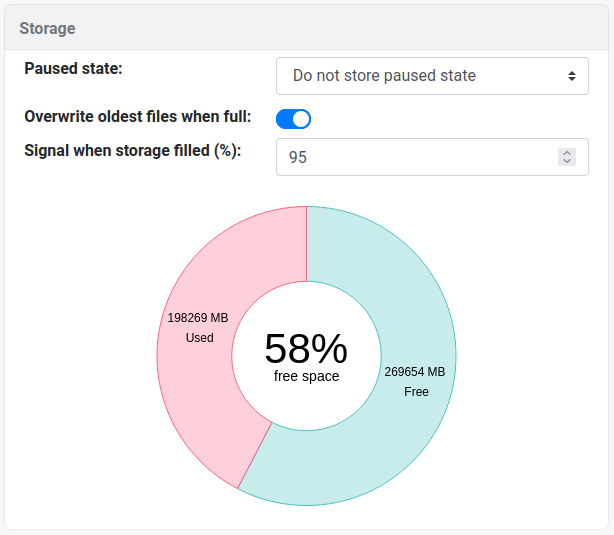

Storage settings

	Entry	Description
	Paused state	Choose how the detector will handle paused states: Do not store paused state: When the system starts it will automatically start logging Store paused state across reboots: The last known state is saved across reboots, e.g. when the system was paused when powered down it will remain paused when power cycled. Always start in a paused state: The system will always start in paused mode and has to be unpaused by the user. See the mDOS map block page for a description of the paused state.
	Overwrite oldest files when full	When selected the system will overwrite the oldest files on the system when no more storage space is available. The deletion of old files goes on a project basis, meaning that when the detector is full, old projects will be deleted as a whole.
	Signal when storage is filled (%)	The percentage of storage filled when the SCN and AUX led will start blinking at in red to signal the device is almost full.
	Storage graph	A doughnut chart showing the amount of used and free space on the system

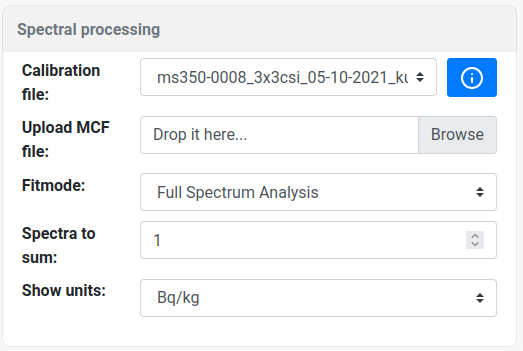

Spectral processing

The processing parameters that convert the measured multichannel spectrum to an energy spectrum and extract radionuclide concentrations. The processing methods are explained in the Gamman section.

Entry	Description	Notes
Calibration file	The currently selected calibration file	Upload MCF files can be inspected and deleted by using the blue info button. This will open a popup displaying the contents of the calibration file
Upload MCF file	Upload new MCF files
Fitmode	Mode to determine the concentrations	See the fitting schemes page on the medusa institute page for an explanation of the modes and parameters
Spectra to sum	The number of spectra to sum before analysing the accumulated spectrum.	The live time of the measurement that is being analysed is the sum of this parameter and the live time set in the Gamma Spectrometer settings tab.
Show units	Output the concentration in Bq/kg or in % (potassium) or ppm (Thorium, Uranium). Cesium units always presented in Bq/kg	Conversions used: 1% ⁴⁰K = 313 Bq/kg ⁴⁰K 1ppm ²³⁸U = 12.4 Bq/kg ²³⁸U 1ppm ²³²Th = 4.1 Bq/kg ²³²Th

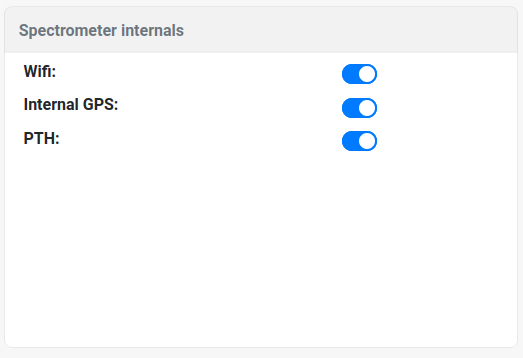

Spectrometer internals settings

This section is only visible if the spectrometer contains a wifi connection, a internal GPS or a PTH sensor.

	Entry	Description
	Wifi	Enable or disable the WiFi access point. Note that when this option is turned off, the only option to reach the detector is by connecting to the spectrometer by using a cable that has an ethernet connector. Not having the cable available means that the detector is inaccessible. Therefore, the only reason to change this setting is by clicking 5 times in the "Wifi:" before changing and saving the setting.
	Internal GPS	Enable or disable the internal GPS. Note that the system can log internal and external GPS at the same time. If the external GPS option is used, it is advised to disable the internal GPS
	PTH	Enable or disable the internal Pressure, Temperature and Humidity sensor

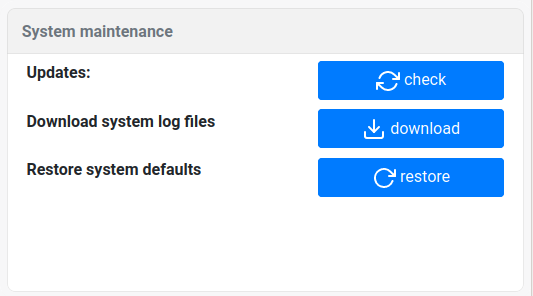

System Maintenance

	Entry	Description
	Updates	Open the updates page to apply system updates or patches
	Download logs	Download the log files can contain system debug information. Medusa may request this download in case of detector issues.
	Restore system defaults	Reset the system to factory defaults. These are the settings that Medusa has configured before ship[ping the system and are unique for each system. Project data will not be deleted.

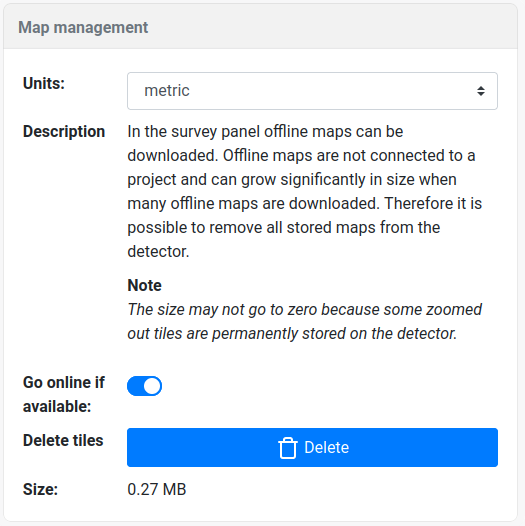

Map management

	Entry	Description
	Units	The units used on the map viewer (metric or imperial)
	Go online if available	If enabled the detector will try to download map tiles from the internet that function as a background on the mapviewer. This might be disabled when being in the field and using a mobile connection.
	Delete tiles	On the map viewer, offline maps can be downloaded. Offline maps are not connected to a project and can grow significantly in size when many offline maps are downloaded. Therefore it is possible to remove all stored maps from the detector
	Size	Size of the maps stored on the detector
