Mounting
Choosing the Right Mounting Option for Your Gamma-Ray Spectrometer
Medusa Radiometrics offers a range of mounting solutions to integrate our gamma-ray spectrometers with your survey platform — whether you are using a drone, quad, car, or conducting walking surveys. Below, we outline the available options to help you choose the best fit for your application.
MS-2000

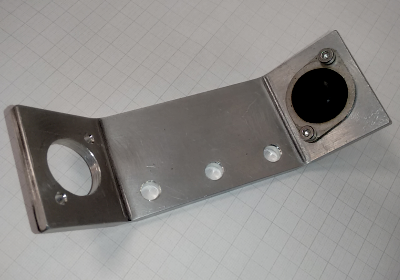

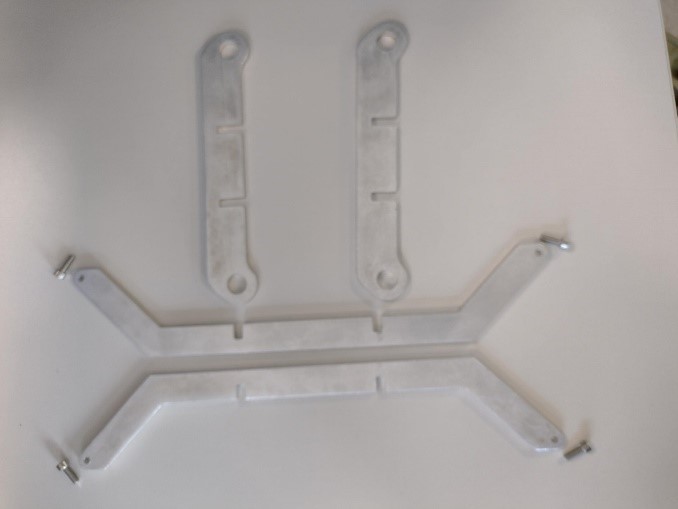

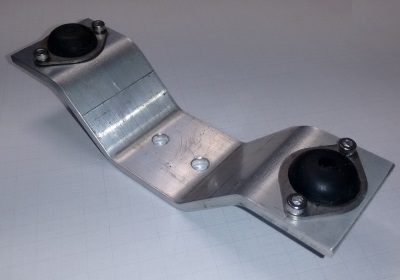

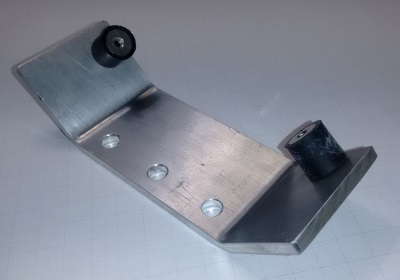

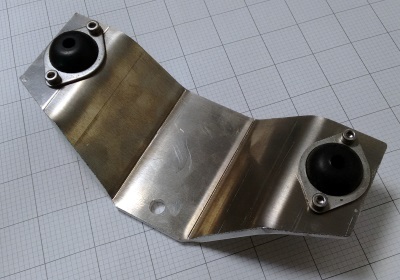

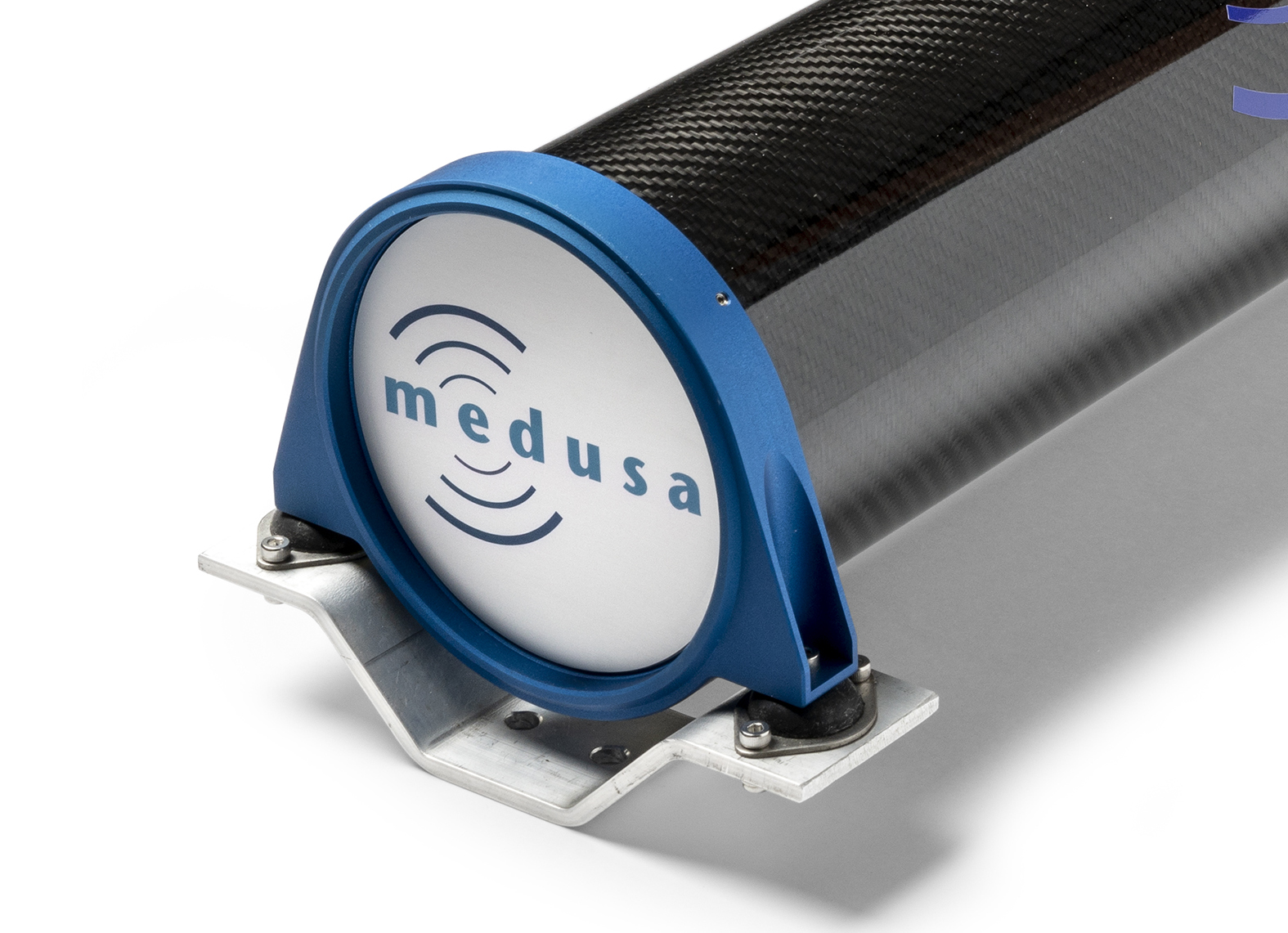

The carbon MS-2000 spectrometers have aluminum covers with mounting points. Medusa supplies mounting brackets, which can be used to install these spectrometers on a survey vehicle.

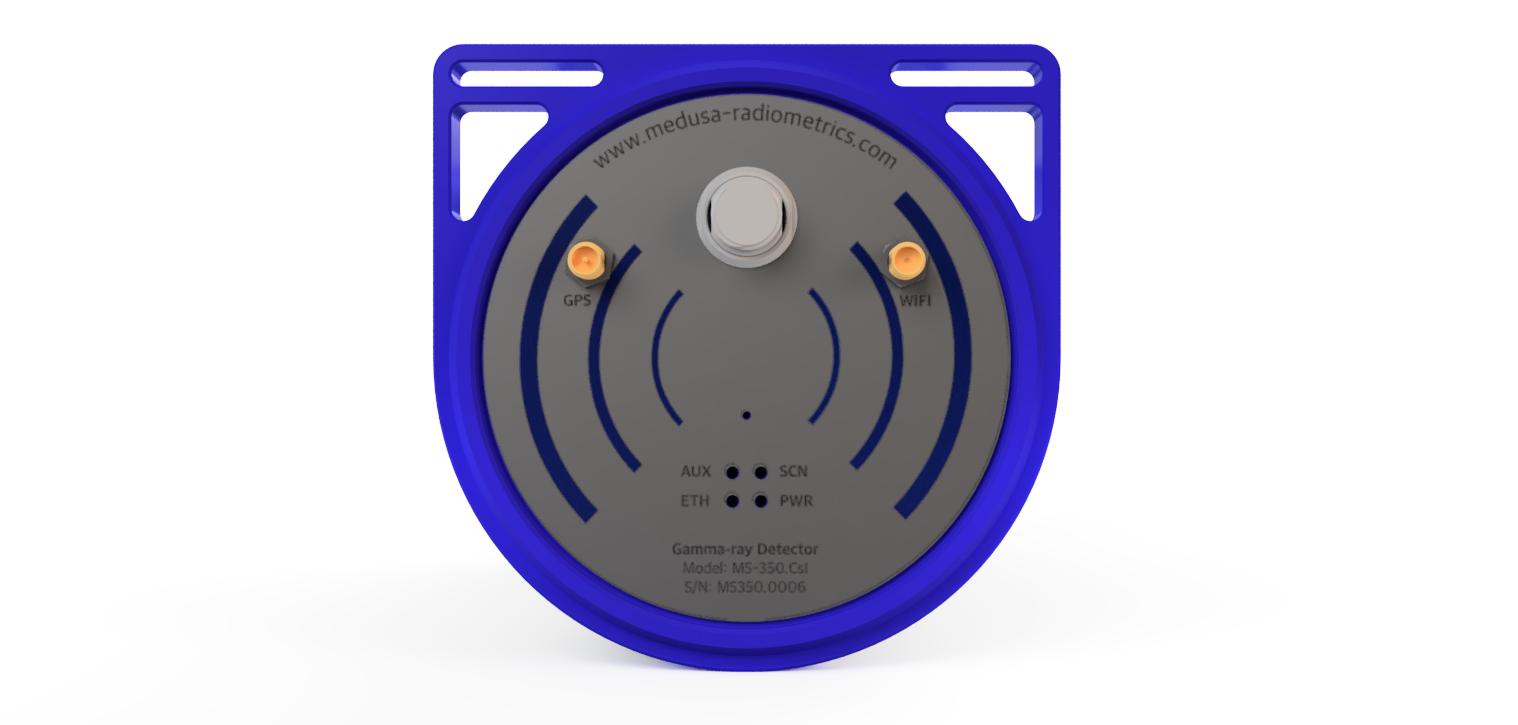

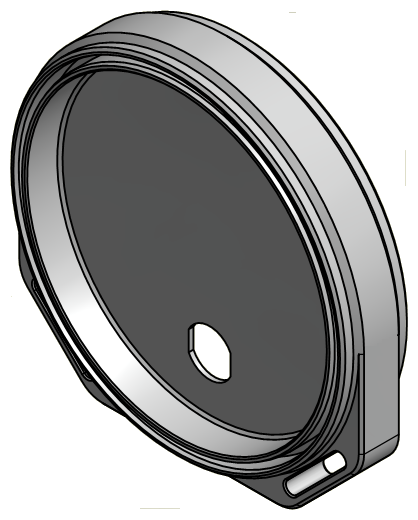

Bracket type | Cap cover | Picture |
---|---|---|
![]() | ![]() |
MS-1000, MS-700, MS-350 and MS-100 UAV
The MS-1000, MS-700 and MS-350 can be used in a variety of survey applications. To get the most out of your Medusa gamma-ray spectrometer, you need the right mounting system for your survey platform. Whether you’re flying on a drone, driving with a quad or vehicle, or conducting walking surveys, we provide reliable, tested mounting solutions to secure your equipment safely and effectively.
Our range includes:
Standard and quick-release mounting plates for drones and vehicles
Custom-designed integration systems tailored to your specific drone
Rugged backpack setups for ground-based, human-carried surveys
We also offer options with or without vibration dampeners to protect sensitive electronics, depending on your platform’s needs.
On the MSB-30x page, you’ll find details to help you select the best option for your project.

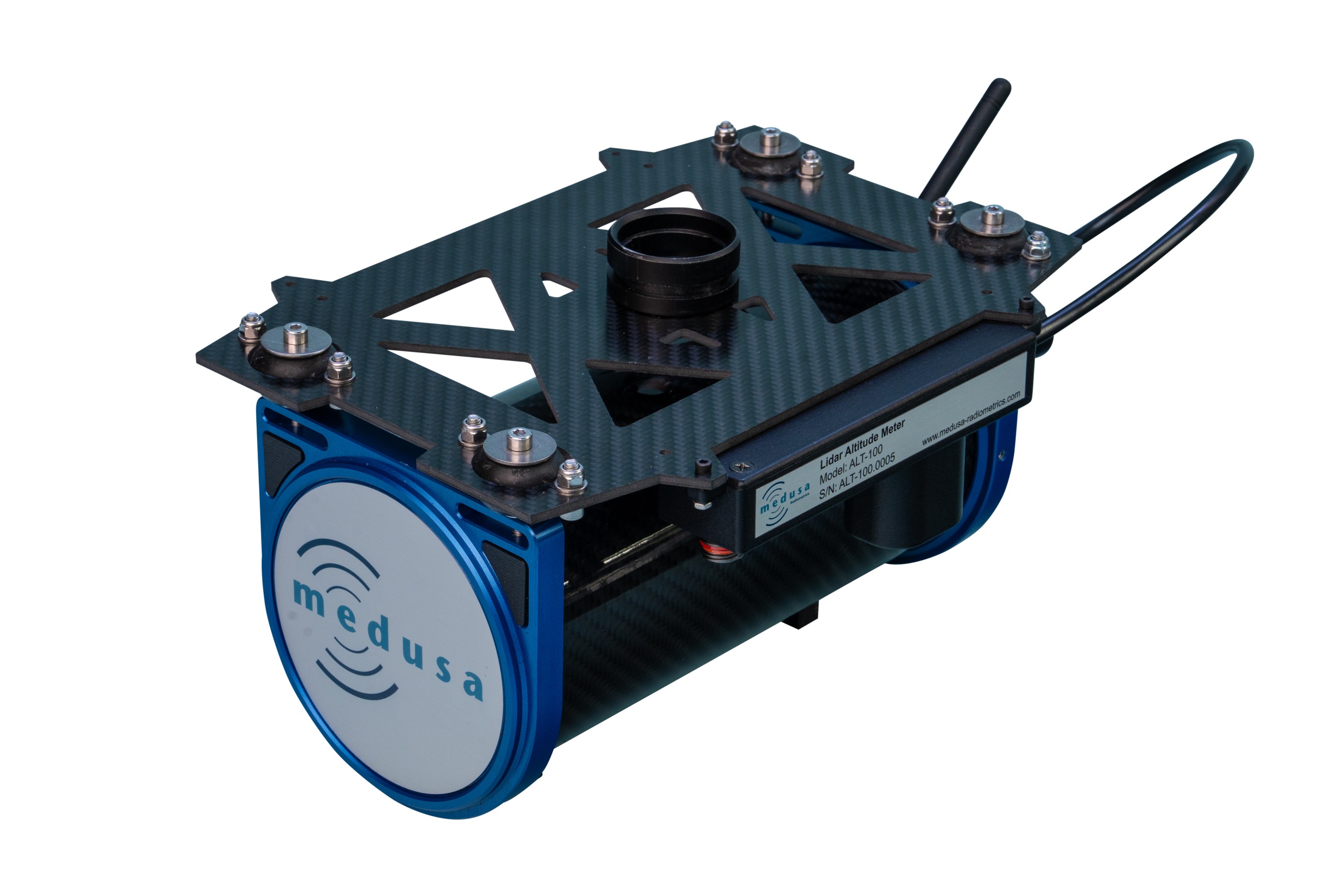

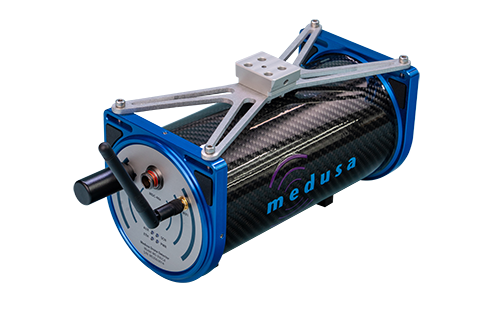

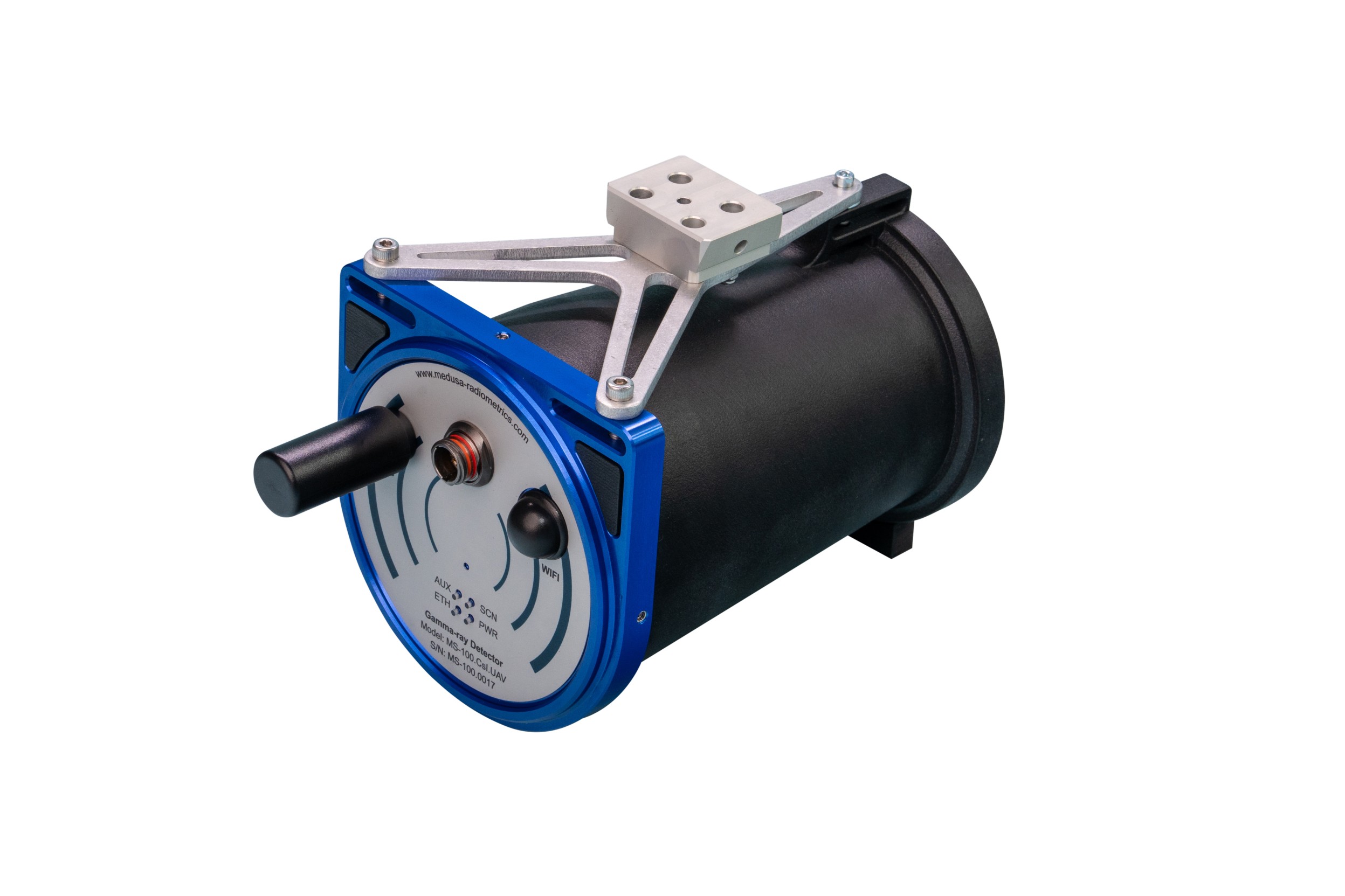

SPH quick release | Carbon plate | MS-100 UAV |
---|---|---|
![]() | ![]() | ![]() |
About Dampeners
We offer all mounting solutions with or without vibration dampeners.
Our recommendation: We strongly advise using dampeners to protect the electronics from mechanical shock and vibration.
Important note for drone users: Excessive dampening can introduce resonance that interferes with the drone’s flight stabilization system. Based on our experience, minimal, hard dampening is usually the optimal balance for airborne systems.
