These pages contain info on the gamma-ray spectrometers built by Medusa. The table below summarizes the components that are used in these systems.

All technical drawings of the listed systems can be found on the dimensions of systems page

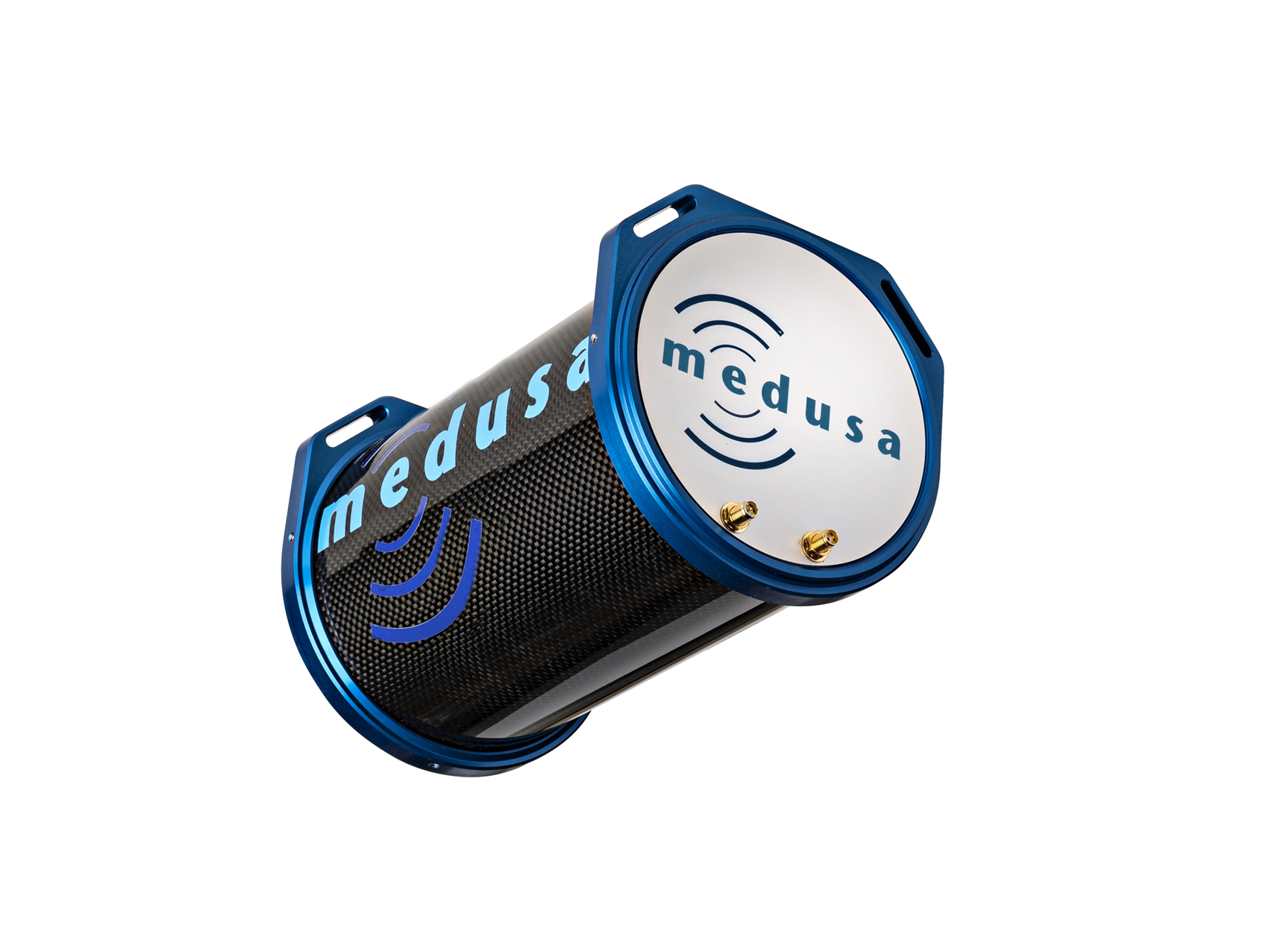

MS-350

Status

Housing

MCA

Cables


Deprecated

Carbon tube V1
(120 mm diameter)

mMCA V2

MDC-40x
MDC-50x

Active

Carbon tube V2
(100 mm diameter)

mMCA V2

MDC-40x
MDC-50x

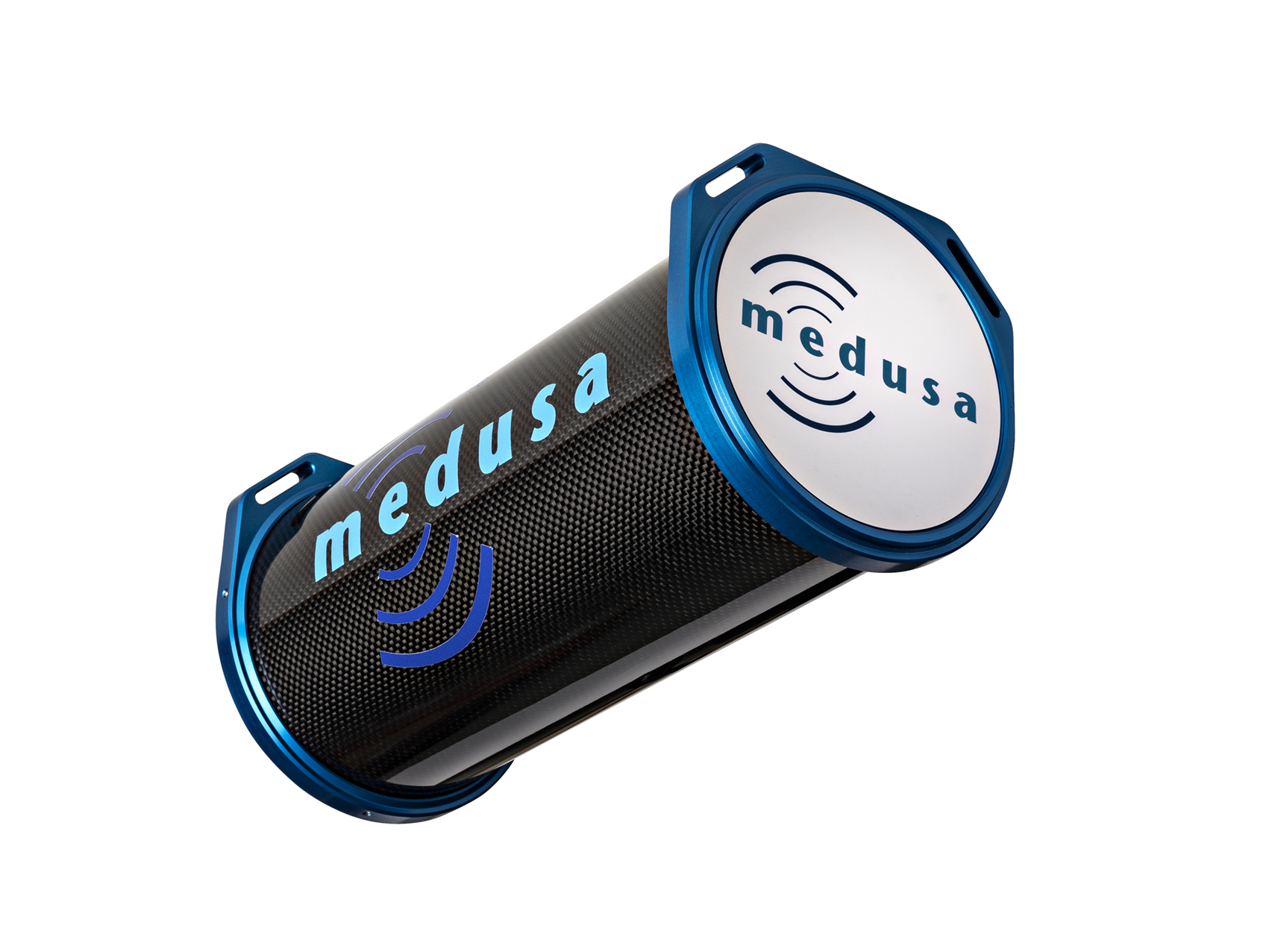

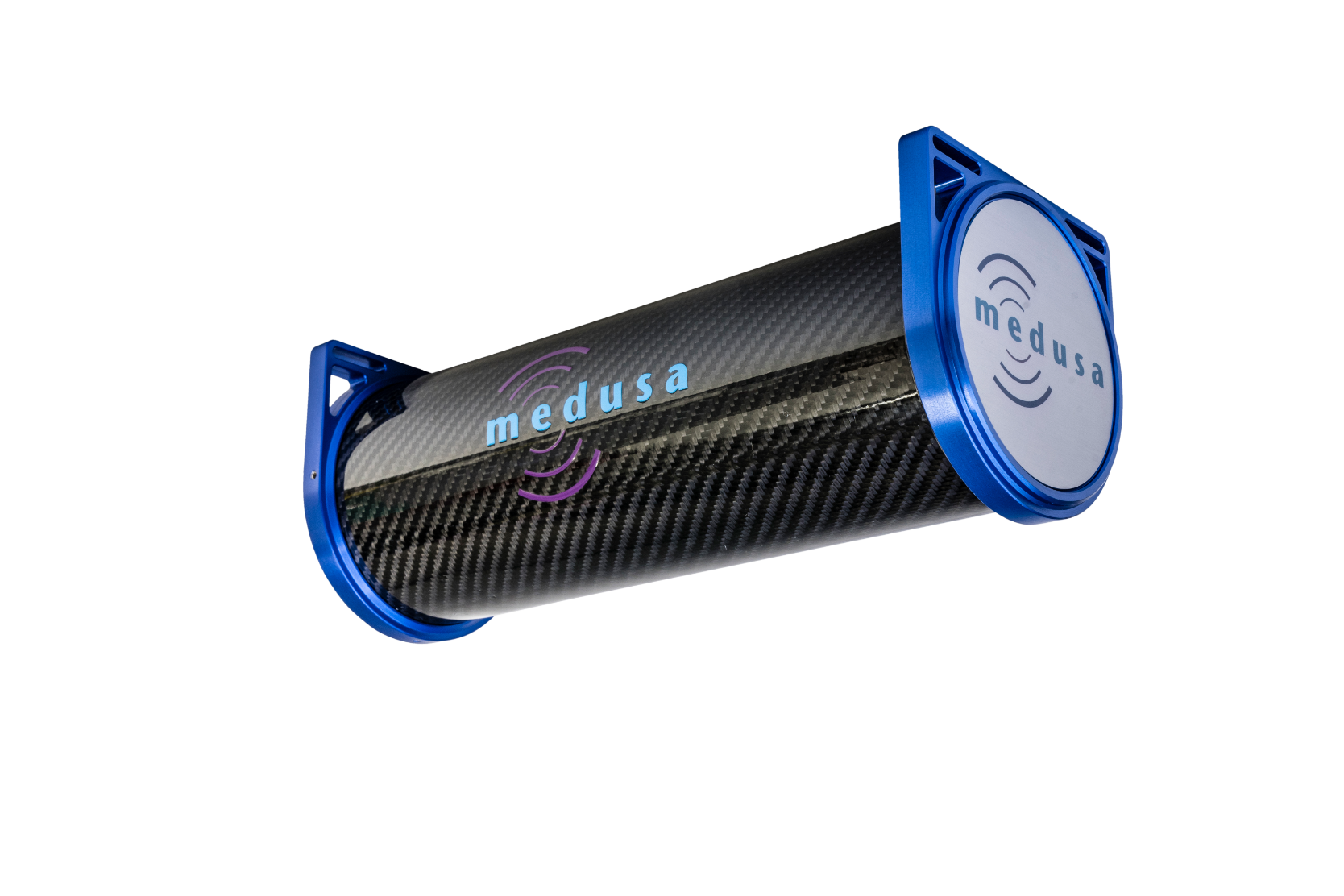

MS-700

Status

Housing

MCA

Cables


Deprecated

Carbon tube V1
(120 mm diameter)

mMCA V2

MDC-40x
MDC-50x

Active

Carbon tube V2
(100 mm diameter)

mMCA V2

MDC-40x
MDC-50x

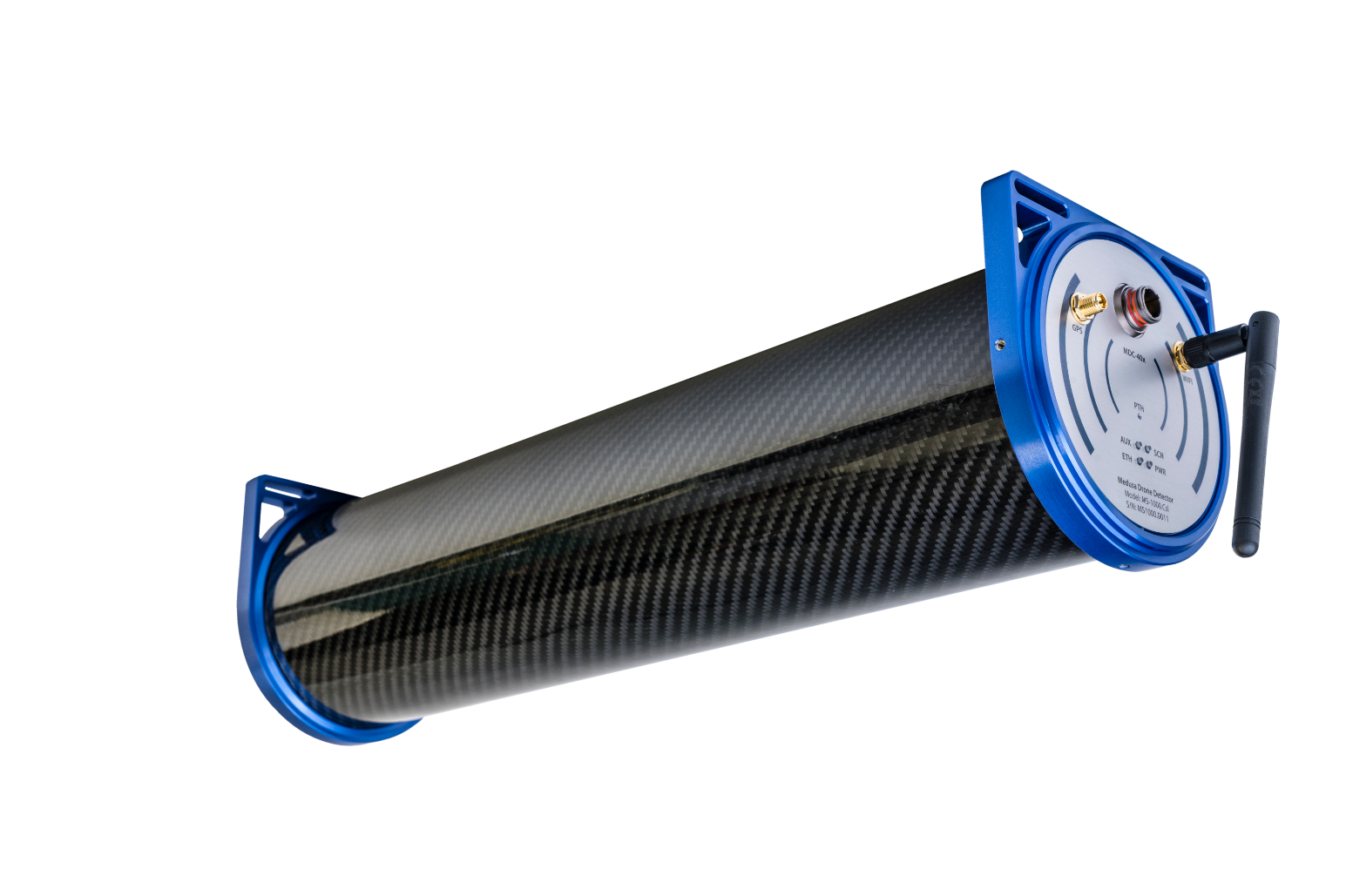

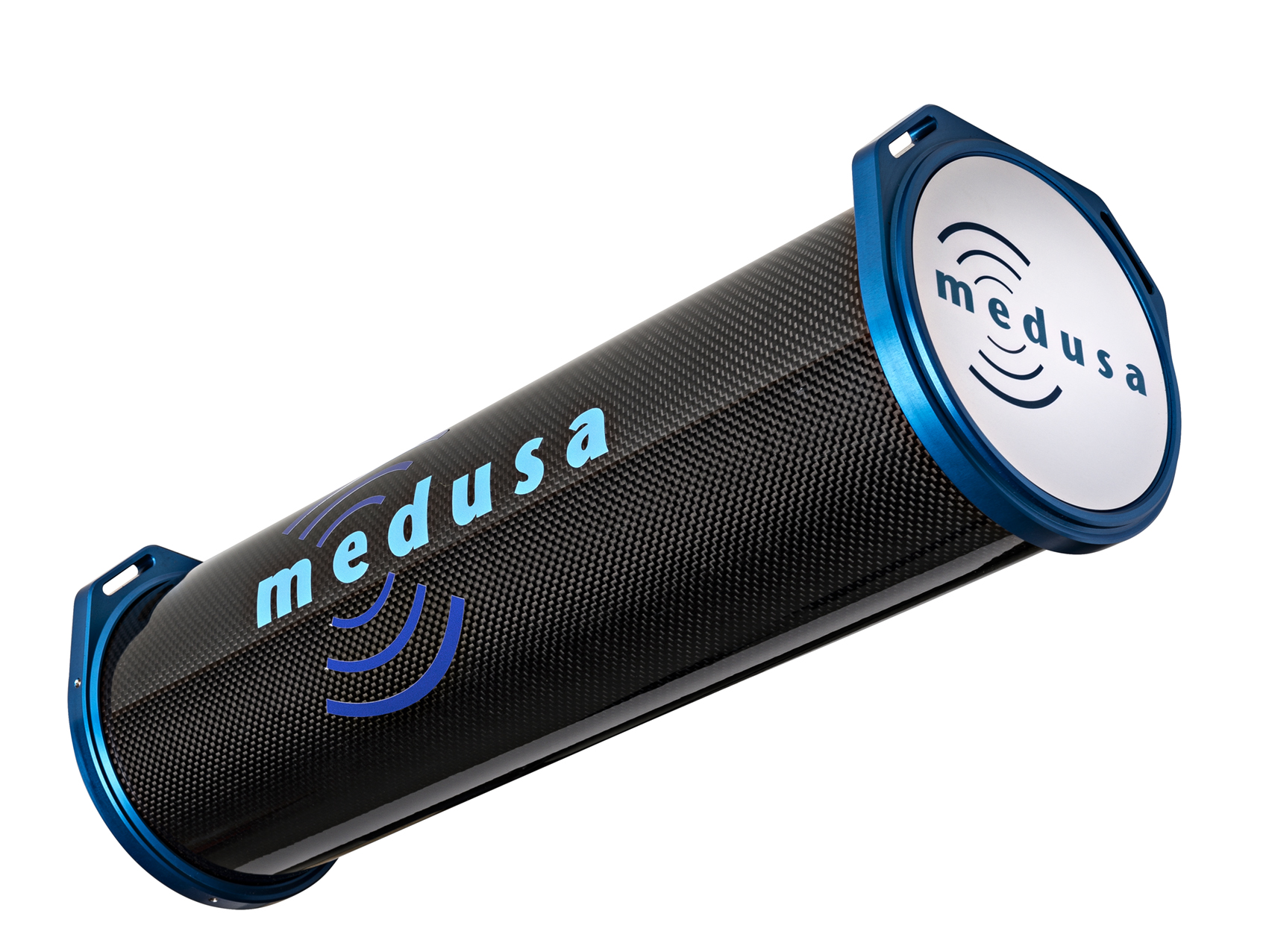

MS-1000

Status

Housing

MCA

Cables


Deprecated

Carbon tube V1
(120 mm diameter)

mMCA V2

MDC-40x
MDC-50x

Active

Carbon tube V2
(100 mm diameter)

mMCA V2

MDC-40x
MDC-50x

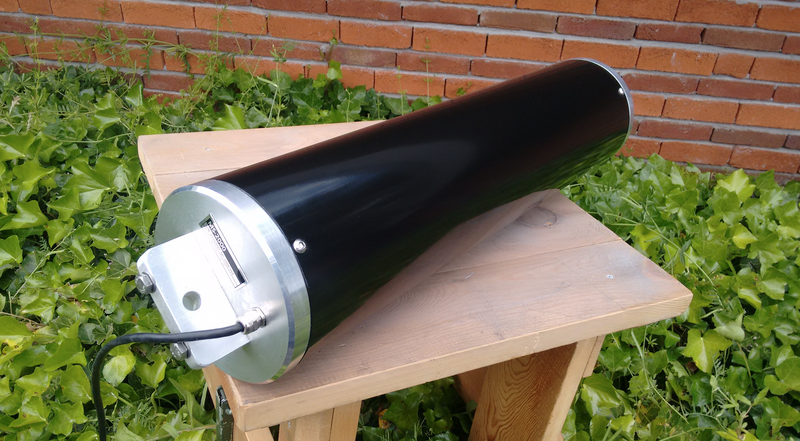

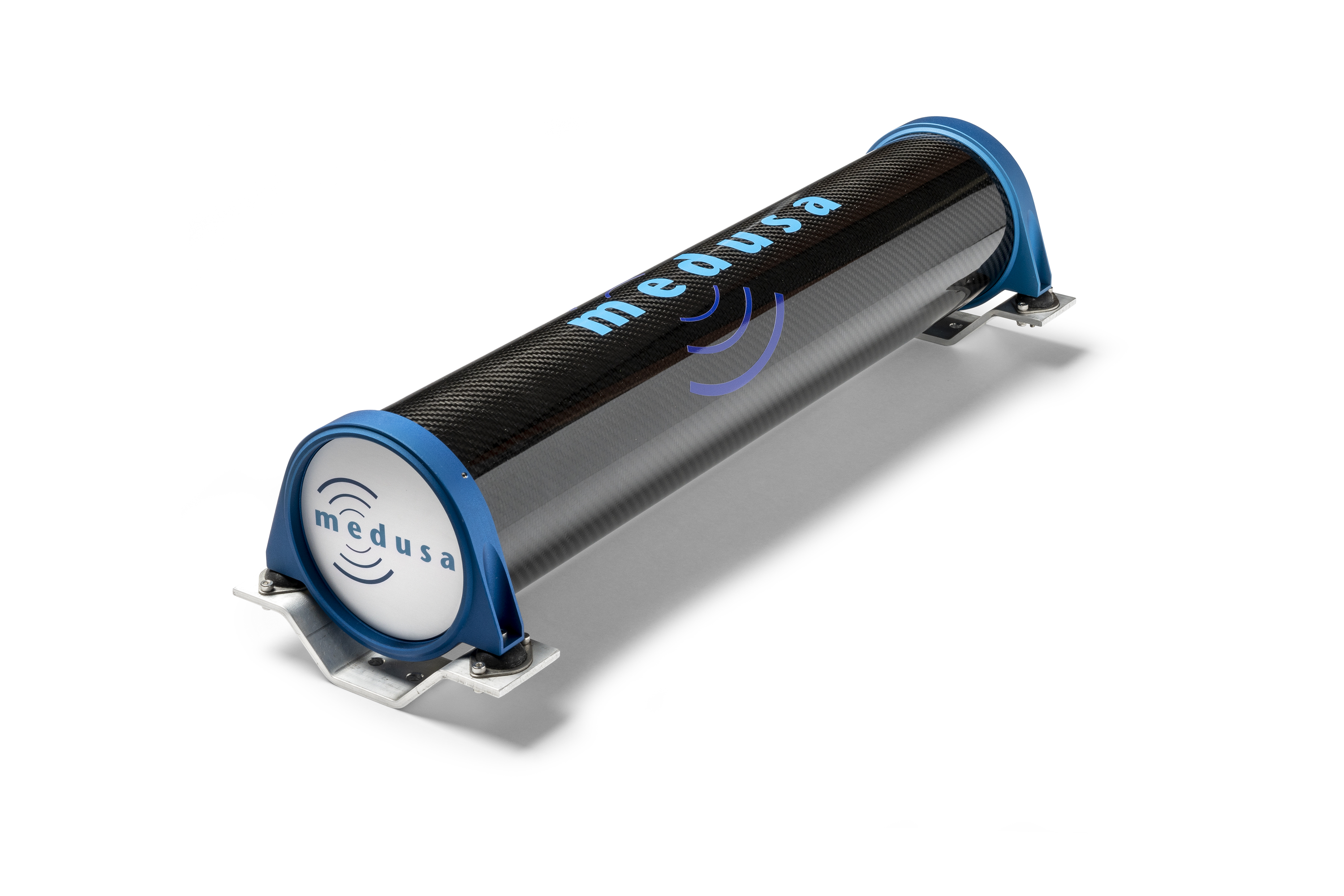

MS-2000

Status

Housing

MCA

Cables


Deprecated

Alu tube

Base527

MDC-200

Deprecated

Carbon tube V1
(120 mm diameter)

Base527

MDC-200

Deprecated

Carbon tube V1
(120 mm diameter)

mMCA V1

MDC-300

Active

Carbon tube V2
(120 mm diameter)

mMCA V2

MDC-40x
MDC-50x

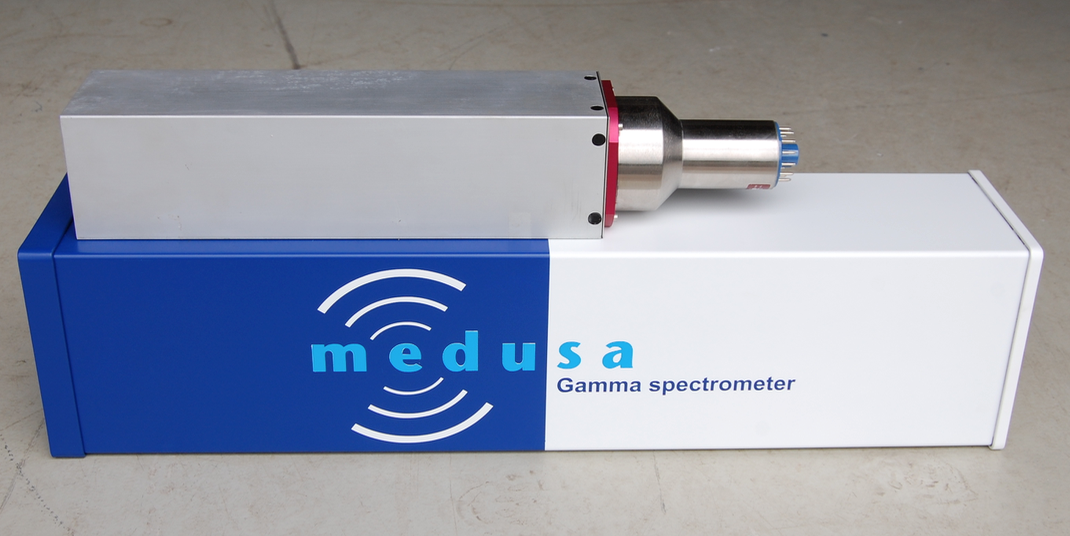

MS-4000

Status

Housing

MCA

Cables


Deprecated

Aluminium box V1

vMCA

Deprecated

Aluminium box V1

mMCA V1

MDC-300

Active

Aluminium box V1

mMCA V2

MDC-40x
MDC-50x
