MSB-30x mounting brackets

The MSB-30x brackets can be used to mount the Medusa MS-1000, MS-700, MS-350 and MS-100 spectrometers on a UAV or other survey vehicle. Since there are many types of integration available, these mountings have been designed to be attached to a variety of frames.

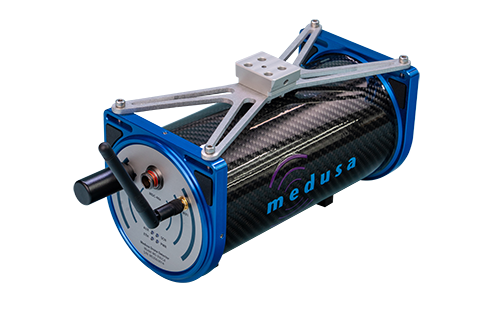

The MSB-302 brackets are specifically designed to mount the Medusa MS-100 and MS-350 on a DJI M300/M350 drone and use a quick release mechanism.

Technical details

	MSB-301	MSB-302	MSB-303

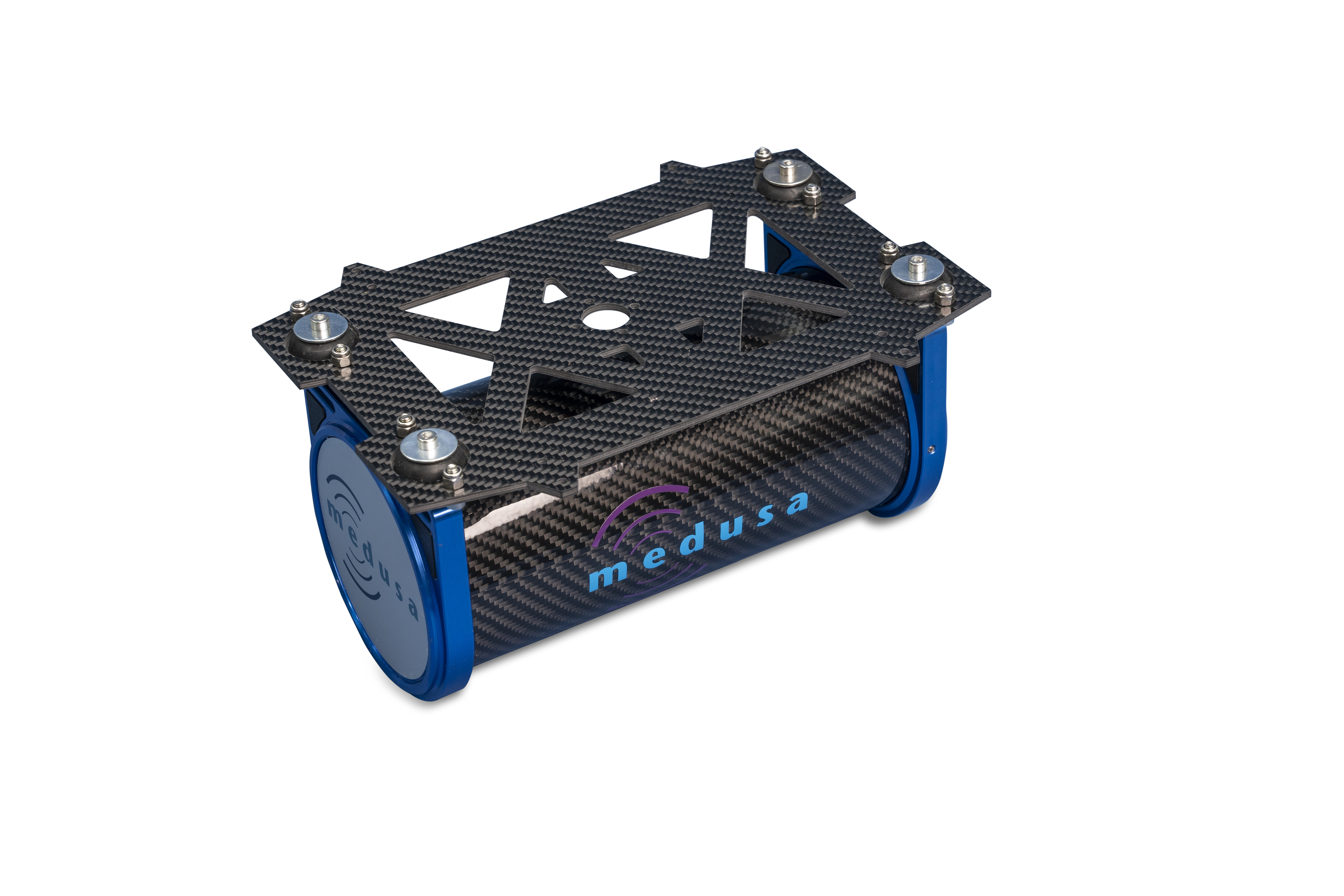

Characteristics	Carbon fiber plate that functions as the mounting interface. Customizable to be mounted under any drone, optionally fitted with a quick-release system.	Aluminum based mounting frame with a quick-release mechanism.	Carbon-fiber rods with a 4-point quick-release system for extra stability.

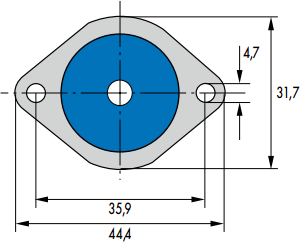

Vibration dampeners	Integrated	Integrated	Integrated
Mouting, drawings and assembly instructions	MSB-301 assembly instructions	MSB-302 assembly instructions	MSB 303 Assembly Instructions
