Cables and connectors

Medusa detectors can be connected by a variety of cables. Some cables are only used to power the detector, and other cables are used to have a wired connection to the detector. Each series of cables is characterized by the connector inserted into the detector. Below is a list of the cables manufactured for Medusa detectors.

MDC-10X		Communication only cable used with spectrometers using the RS-232 protocol.

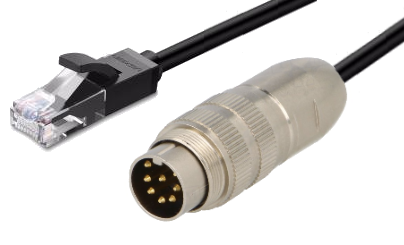

MDC-20X		Simple PoE (Power over Ethernet) cable without voltage protection. Often used together with a PoE injector unit.

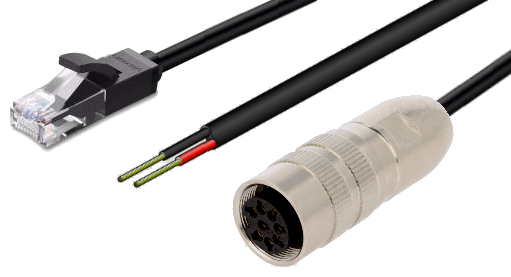

MDC-30X		Combined power and ethernet cable with a Lumberg connector. The MDC-300 cables include a voltage protection circuit.

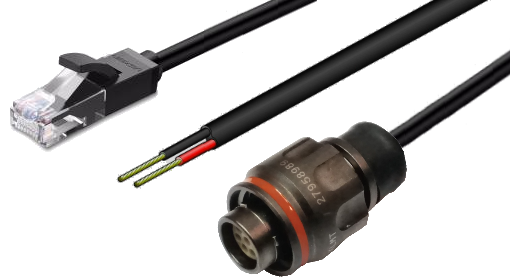

MDC-40X		Combined power and ethernet cable with a Lemo connector. Includes a voltage protection circuit.
MDC-50X		USB power and possible communication. Developed for powering the spectrometer from a powerbank.

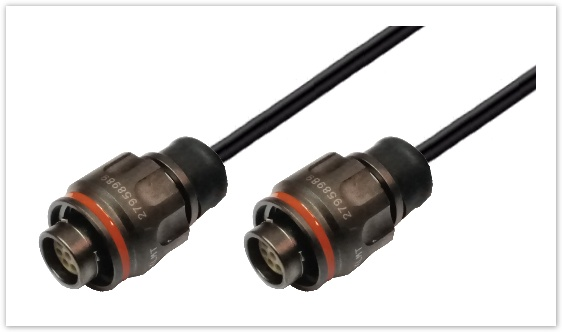

MDC-60X		Power cable and communication cable used to connect the gamma-ray spectrometer to the connection box.
MDC-70X		Power cable used in combination with the connection box.
MDC-80X		Power and communication cable used to connect the gSMS sensor
