Appearance
MSB-20x mounting brackets

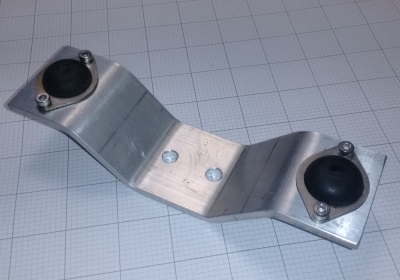

The MSB-200 (picture on the left) and MSB-201 brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicle. They can be used with spectrometers numbered 2018T044.025 and later. The MSB-201 bracket is wider in the middle and has only a single mounting hole on the outside, where the MSB-200 bracket has two holes in the middle. Other mounting options can be found here.
For mounting the rubbers onto a vehicle, it is recommended to use stainless steel M4 bolts with a 16mm (nylon) spacer between rubber and bolt. A usable spacer is produced by duratool, article number DT000343. Make sure to use a bolt with a wide head, or use an additional washer.

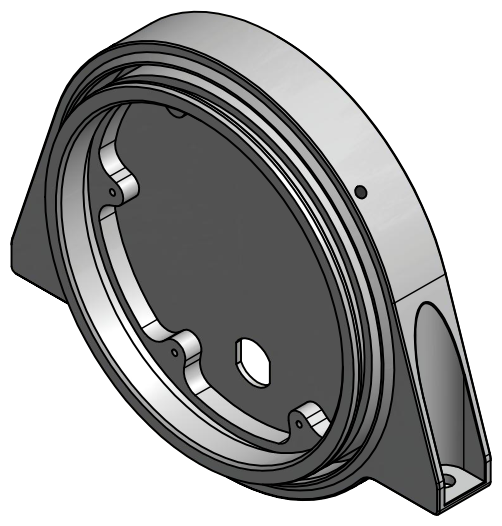

| Latest code | Active | |
|---|---|---|
| Aluminium cover |  | |

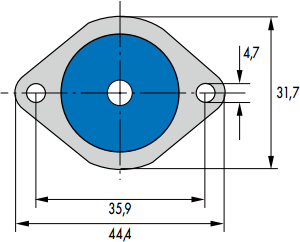

| Rubbers |  | 'Instrument' mounts Produced by Flexico Article number 039 18 023 40 shore |
| Drawing | MSB-200.pdf MSB-201.pdf MSB-201 v3.step |
Spectrometer configurations
The drawings below show how the brackets can be used with some spectrometers. Click on an image to enlarge.
| MSB-200 with MS-1000 |  |
|---|---|

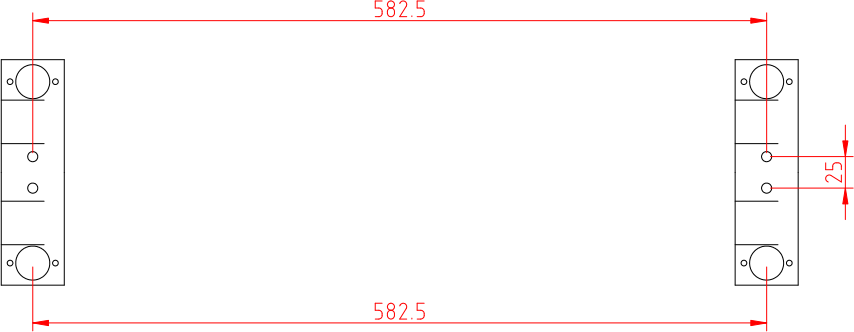

| MSB-200 with MS-2000 |  |

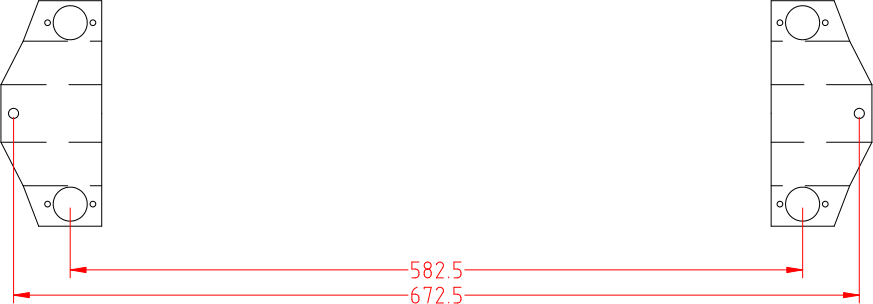

| MSB-201 with MS-2000 |  |
The MSB-200 (picture on the left) and MSB-201 brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicle. They can be used with spectrometers numbered 2018T044.025 and later. The MSB-201 bracket is wider in the middle and has only a single mounting hole on the outside, where the MSB-200 bracket has two holes in the middle. Other mounting options can be found here.
For mounting the rubbers onto a vehicle, it is recommended to use stainless steel M4 bolts with a 16mm (nylon) spacer between rubber and bolt. A usable spacer is produced by duratool, article number DT000343. Make sure to use a bolt with a wide head, or use an additional washer.
| Latest code | Active | |
|---|---|---|
| Aluminium cover | | |
| Rubbers | | 'Instrument' mounts Produced by Flexico Article number 039 18 023 40 shore |
| Drawing | MSB-200.pdf MSB-201.pdf MSB-201 v3.step |
Spectrometer configurations
The drawings below show how the brackets can be used with some spectrometers. Click on an image to enlarge.
| MSB-200 with MS-1000 | |
|---|---|
| MSB-200 with MS-2000 | |
| MSB-201 with MS-2000 | |
| MSB-203 with MS-4000 | MS-4000 Mounting Drawing.pdf |
| MSB-203 with MS-7300 | MS-7300 Mounting Drawing.pdf |
