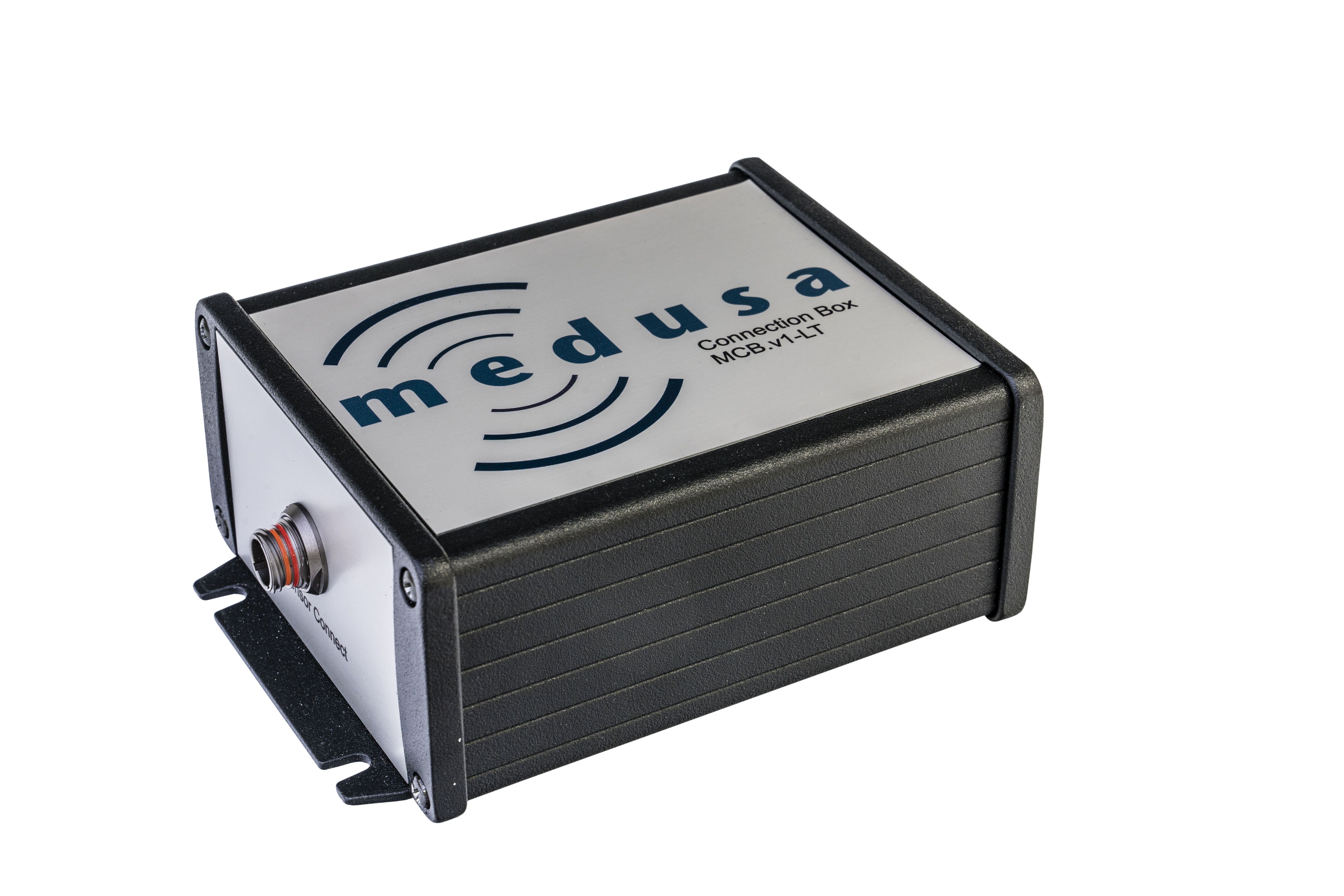

Connection box

Connection box 2.png

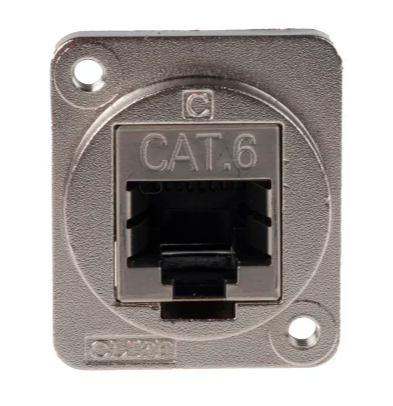

The connection box provides RS-232 and ethernet access and a separate power input. This box can be used on any Medusa detector with a Lemo detector, such as detectors that use an MDC-40x cable, an MDC-50x cable, or an MDC-60x cable. This connection box is the default method of providing access to the sensors for the MS-2000 and is available on request for the MS-1000, MS-700, and MS-350. In addition to providing power to the sensor, this connection box can connect to the sensor by using ethernet or use the RS-232 interface of the sensor.
