MSB-10x mounting brackets

These MSB-10x brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicles. It can be used with spectrometers numbered up to 2017T043.024.

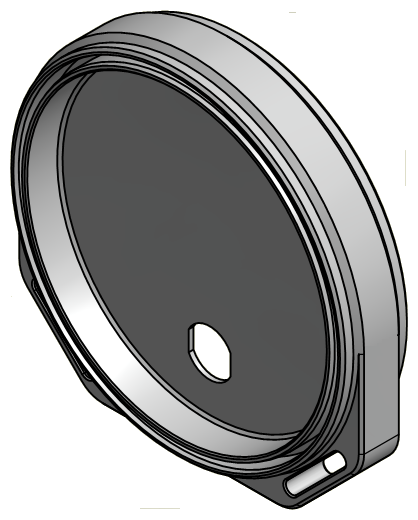

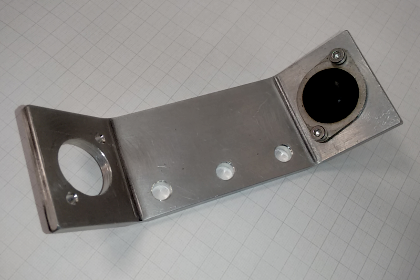

	MSB-100	MSB-101
Aluminium cover

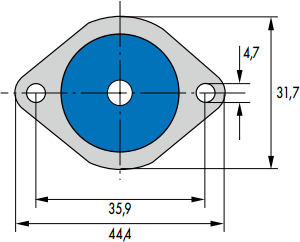

Rubbers		Circular mounts, type B 15mm diameter, 15mm height.The rubbers can be mounted onto the bracket using M4 x 8mm bolts.		'Instrument' mounts Produced by Flexico Article number 039 18 023 40 shore
Drawing	MSB-100 mount.pdf	MSB-101 mount.pdf
Notes	MSB-100 mounts are obsolete.
