MSB-301 assembly instructions

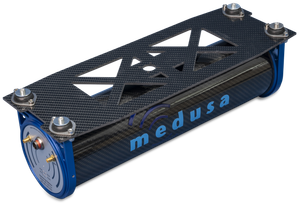

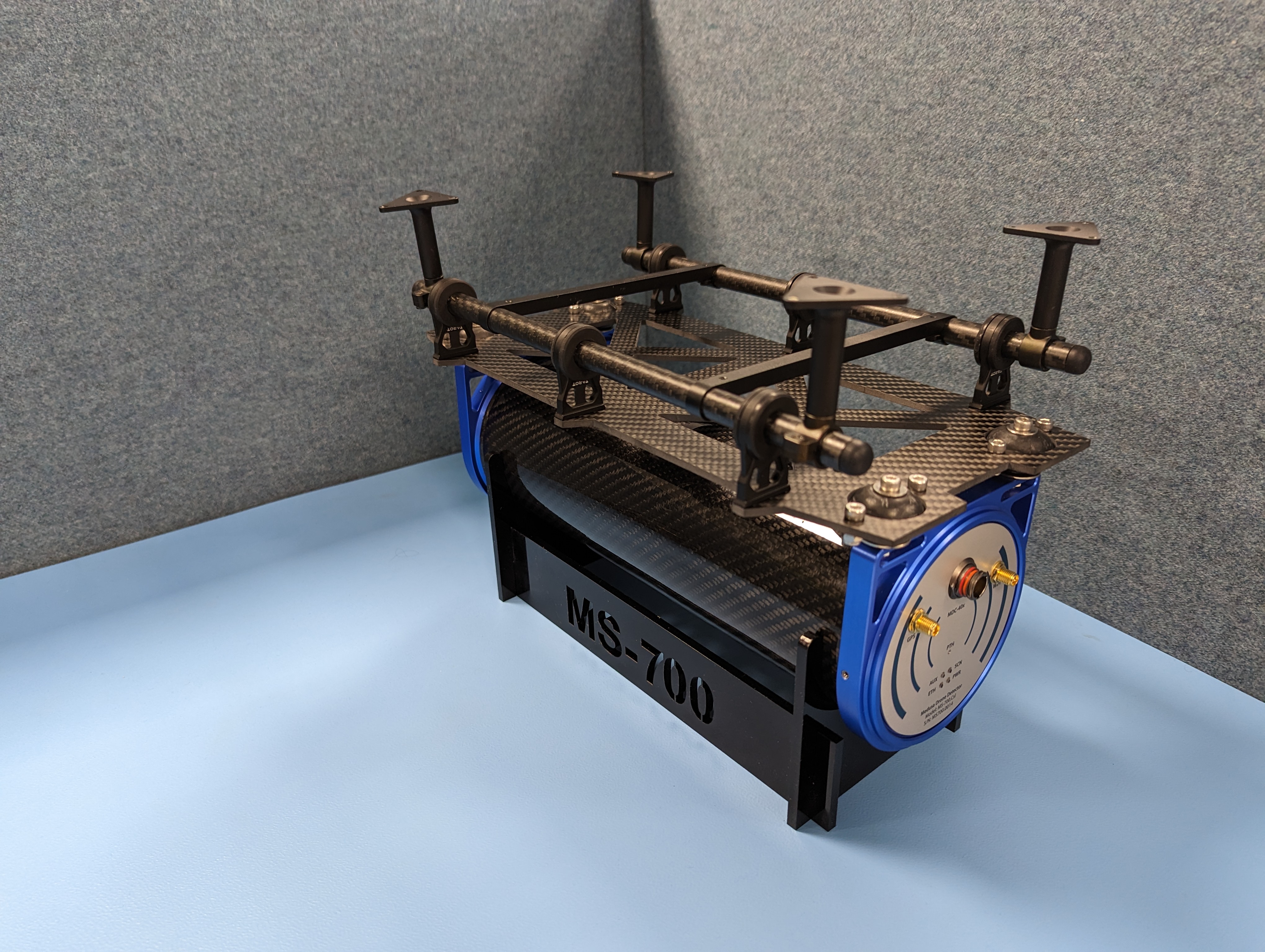

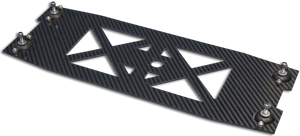

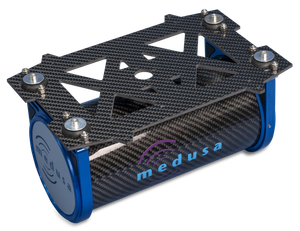

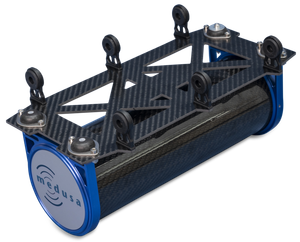

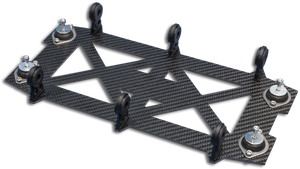

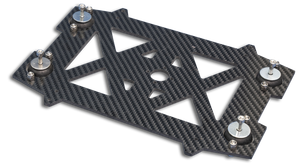

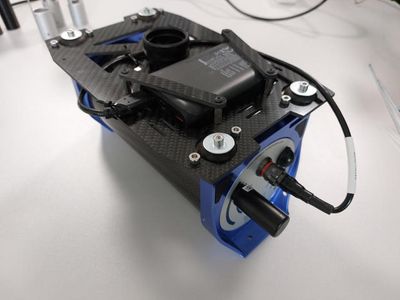

The attached pictures show examples of how the MS-350/700/1000 MSB-301 drone mounts are assembled. This drone mount is a carbon fiber plate that can easily be customized to be attached under many drone frames.

	Pictures	Drawing
MS-350 plate		Drone plaat MS-350 Drawing.pdf
MS-700 plate		Drone plaat MS-700.pdf
MS-1000 plate E.g. attached to a Gremsy quick-release system		Drone plaat MS-1000.pdf

Assembly instructions

Quick release

It is possible to add a quick-release system to this plate. This includes a second part that can be attached to the bottom of a drone. These two separate parts can be easily (re-)attached.

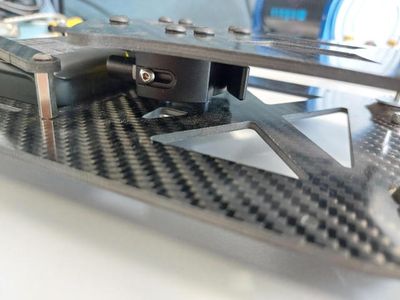

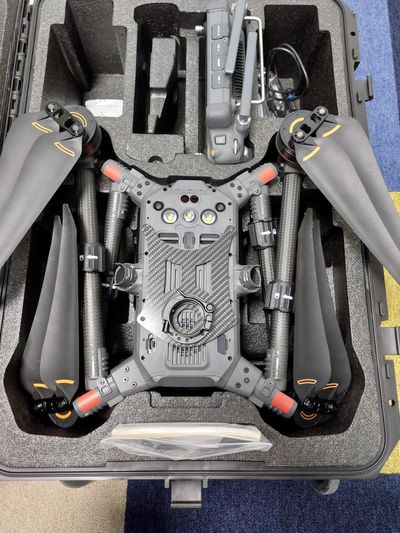

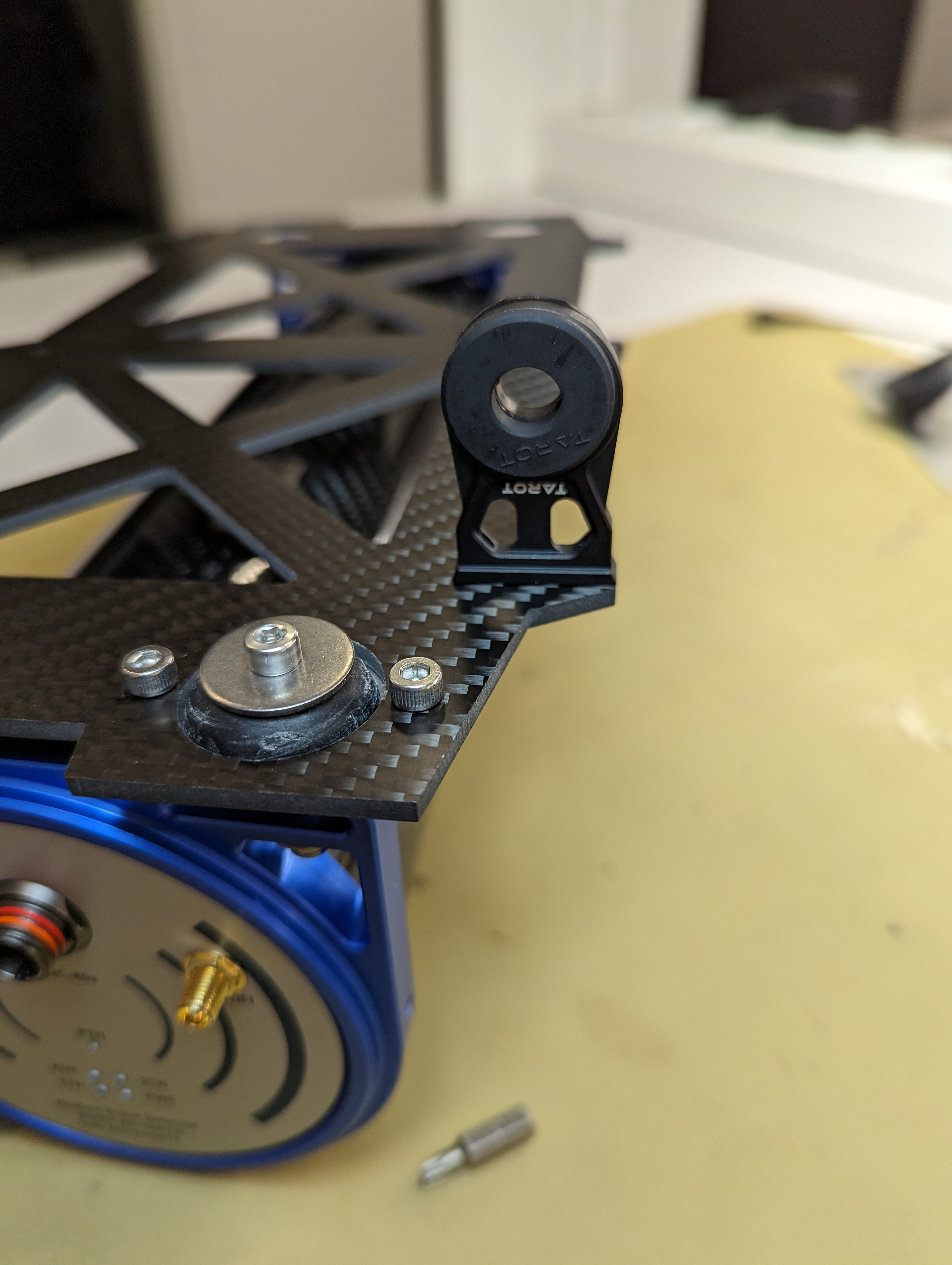

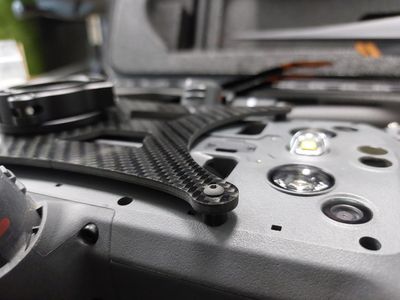

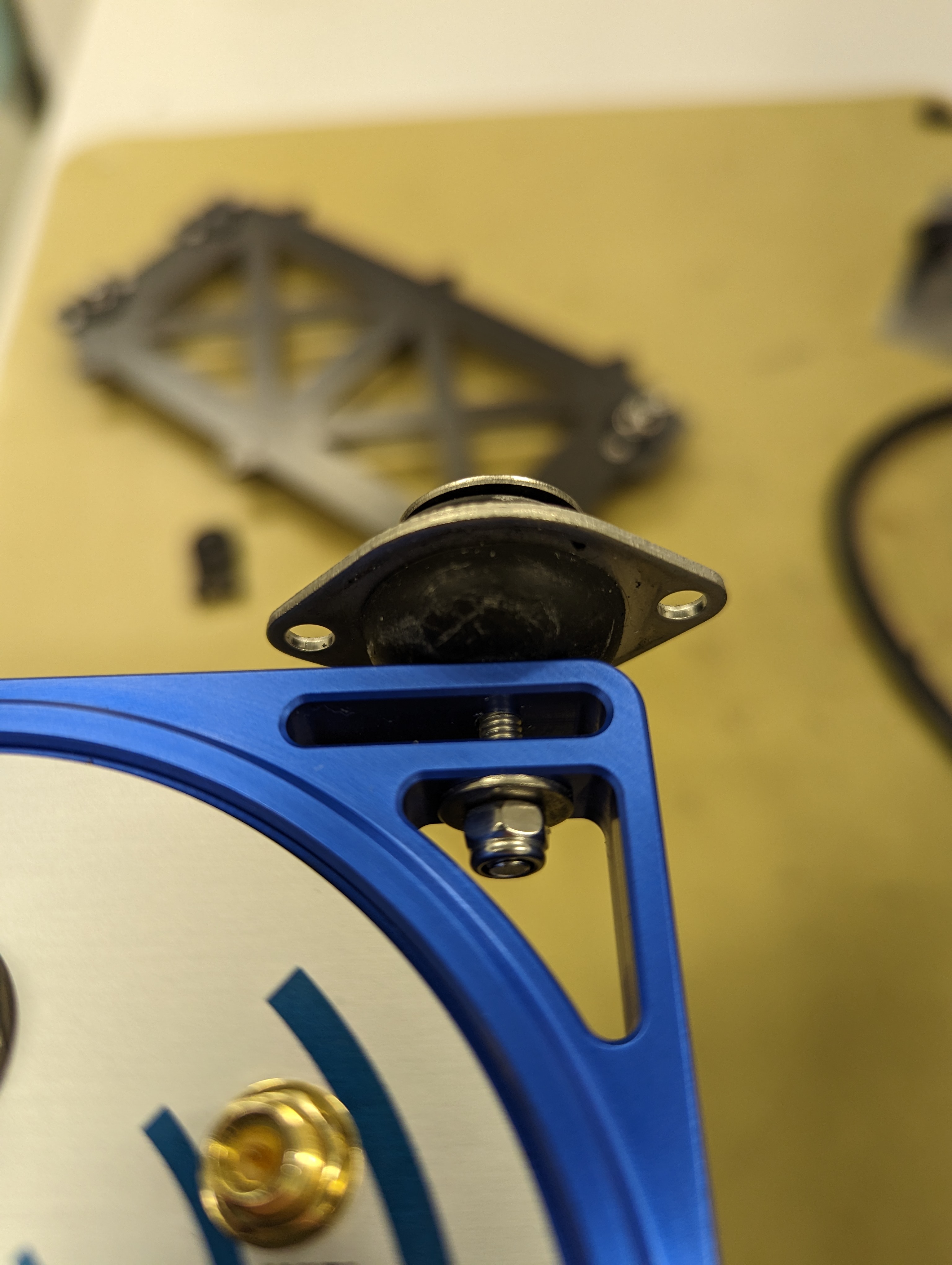

The pictures below show how the upper part of the mounting is attached to the bottom of a DJI M300 drone.
