These MSB-10x brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicles. It can be used with spectrometers numbered up to 2017T043.024.

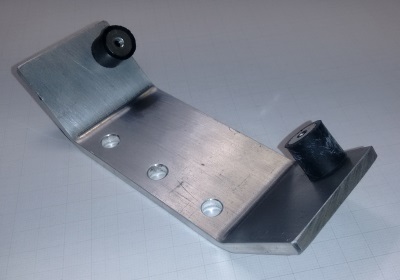

MSB-100

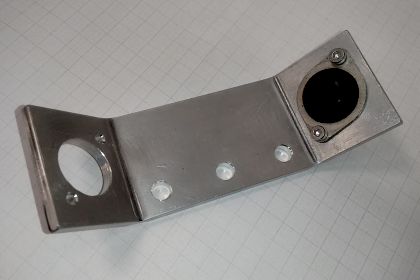

MSB-101

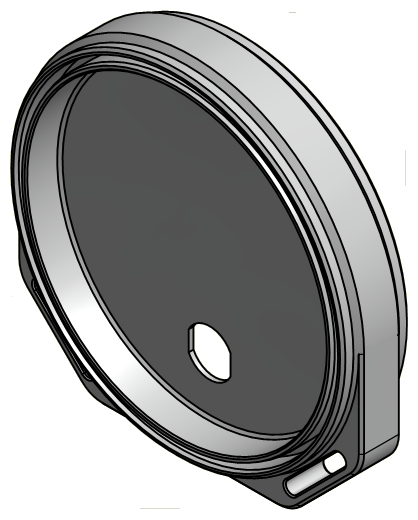

Aluminium cover

Rubbers

Circular mounts, type B
15mm diameter, 15mm height.

The rubbers can be mounted onto the bracket using M4 x 8mm bolts.

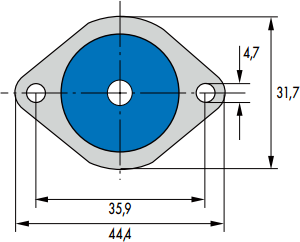

'Instrument' mounts
Produced by Flexico
Article number 039 18 023
40 shore

Drawing

MSB-100.pdf

MSB-101.pdf


Notes

Obsolte
