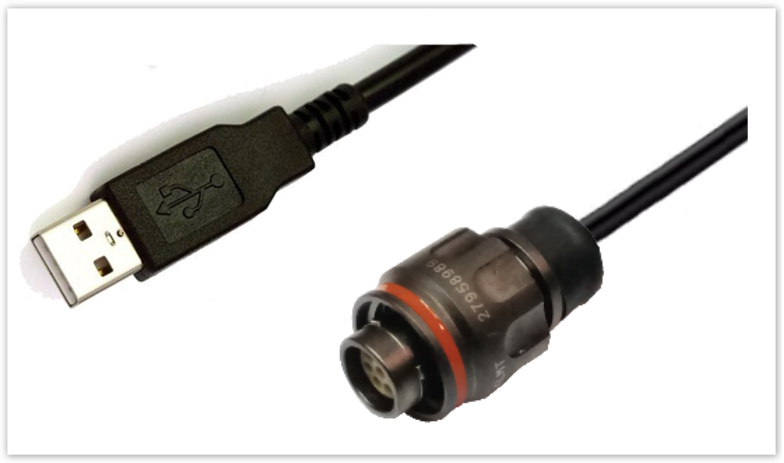

MDC-50x cable
| Communication protocol | None/USB |
|---|---|
| Last spectrometer | Active |
| Voltage protection | No voltage protection |
| Connector A | USB type A |
| Connector B | Lemo FGT.1M.308.XLMT |
| Dust caps | Lemo BGF.1M.100.XAV or BGF.1M.100.CAV (note: this dust cap protects the connector on the cable) |
The MDC-500 and MDC-501 communication cables can be used to power a spectrometer by using a power bank or computer. Note that the cables are not equipped with an under- and overvoltage protection circuit and should only be used with standard USB connections. The MDC-500 cable can only be used to provide power. The MDC-501 cable can also be used to connect access the detector through USB.
The Lemo FGT.1M.308.XLMT connector requires special tools to (dis)assemble. Please contact Medusa if the cable needs servicing.
Variants
| MDC-500 | Can be used to power the spectrometer |
|---|---|
| MDC-501 | Can be used to power and connect to the spectrometer by using USB. |
| MDC-502 | Can be used to power and connect to the spectrometer by using USB. Has option for UART (3v to 5v level) communication. |
| MDC-503A | 1x USB to 1x Lemo. Used to power the detector and connect through usb to ethernet. |
| MDC-503B | 1x USB and 1x flying leads (UART 3v3) to 1x Lemo. Used to power the detector and connect through usb to ethernet. UART is reserved for special requested applications. |
| MDC-503C | 1x USB and 1x flying leads (UART 5v) to 1x Lemo. Used to power the detector and connect through usb to ethernet. UART is reserved for special requested applications. |
| MDC-504 | 1x USB and 1xRJ45 to Lemo connector |
| MDC-505 | 1x USB to Lemo connector (power only) |
All MDC-50x cables have a standard length of 60cm.
MDC-50x ethernet settings
For the MDC-50x cables with internal usb ethernet adaptor, the adapater has to be set to use a static IP address or use a DHCP server.

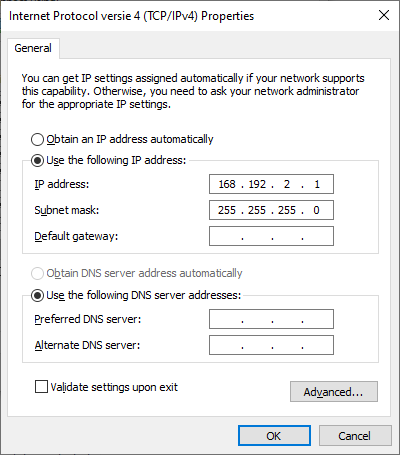

MDC-501 & MDC-502: Look for the TP-LINK Gigabit Ethernet USB Adapter and change it's IPv4 settings as specified below:
MDC-503: Look for the LAN9512/LAN9514 USB 2.0 to Ethernet 10/100 Adapter and change it's IPv4 settings as specified below:
Pin numbering

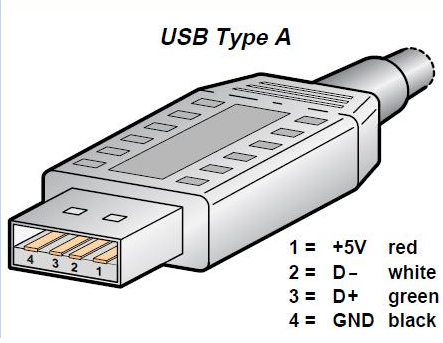

| USB type A |
| Flying leads Only for the MDC-502 cable | |
| Lemo FGT.1M.308.XLMT Note: Pin numbering as seen from the back side. |
Pin description (Lemo connector)
| # | Description | Wire color |
|---|---|---|
| 1 | Power | Red and blue |
| 2 | Debugging only | Brown / white |
| 3 | Debugging only | Blue / white |
| 4 | Tx+ | Orange / white |
| 5 | Tx- | Orange |
| 6 | Rx+ | Green / white |
| 7 | Rx- | Green |
| 8 | Ground | Black and brown |
Wire description flying leads (MDC-502 )
| # | Description | Wire color |
|---|---|---|
| 1 | TTL output pulse voltage level (range 3-5.5V) | Red |
| 2 | Ground | Black |
| 3 | Tx (signal in) | Green |
| 4 | Rx (signal out) | White |
Notes
The MDC-50x cable is a regular usb cable, designed to work with powerbanks.
