Contents of the Medusa detector package

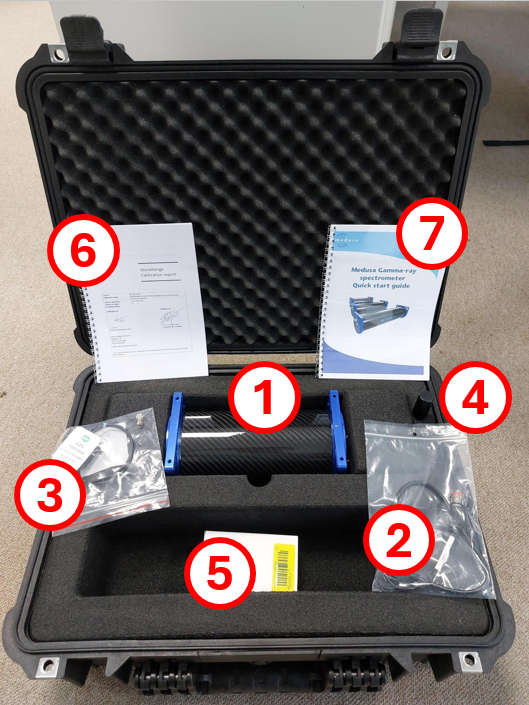

Smaller survey detectors (MS350/700/1000)

Contents:

1. Medusa survey detector
   (This can be an MS-350, MS-700 or MS-1000)

2. MDC-505 power cable
   Is used to power the detector with a battery via USB-A connection.

3. GPS-antenna with 50 cm cable
   The cable provides some freedom of placing the antenna somewhere with a clear skyview (if needed).

4. GPS-antenna stubby
   Has a slightly better accuracy than the cabled antenna, however cannot be placed further from the detector if a better skyview is needed.

5. USB power adapter
   Universal power adapter that provides a voltage of 5 V via USB-A.

6. Calibration report
   Report with detector-specific calibration results.

7. Getting started manual
   Short manual to get you started with the detector.

Weight of the complete package depends on the detector type:

• MS-350 box: 6 kg

• MS-700 box: 8 kg

• MS-1000 box: 10 kg

Dimensions of the box are: 50x39x19 cm

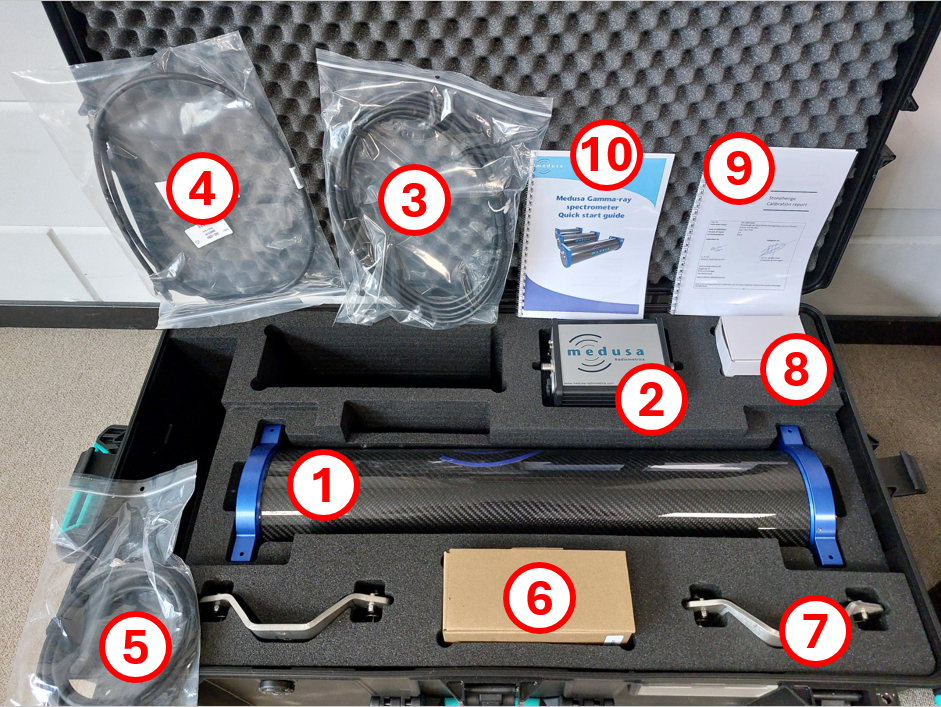

Larger survey detectors (MS2000)

Contents:

1. Medusa survey detector
   Model MS-2000

2. Connection box
   Provides RS-232 and ethernet access and a separate power input.

3. MDC-600 communication cable
   5 meter long lemo-to-lemo cable connecting the detector with the connection box.

4. Ethernet cable
   Establish an ethernet connection via the connection box.

5. MDC-700 power cable
   Lemo-to-flying leads cable. Provides power to the detector via the connection box.

6. GPS antenna dome
   GPS antenna with 3 m cable.

7. Two MSB-20x mounting brackets
   Is used to mount the detector on a survey vehicle.

8. Generic power supply
   Universal power supply with crocodile clamps.

9. Calibration report
   Report with detector-specific calibration results.

10. Getting started manual
    Short manual to get you started with the detector.

Weight of the complete package: 20 kg

Dimensions of the box are: 82x45x29 cm
