Contents of the Medusa detector package ​

This page shows the components that are present in the standard package of a Medusa survey detector. Auxiliary equipment or other cables are not included by default, but they can be ordered separately.

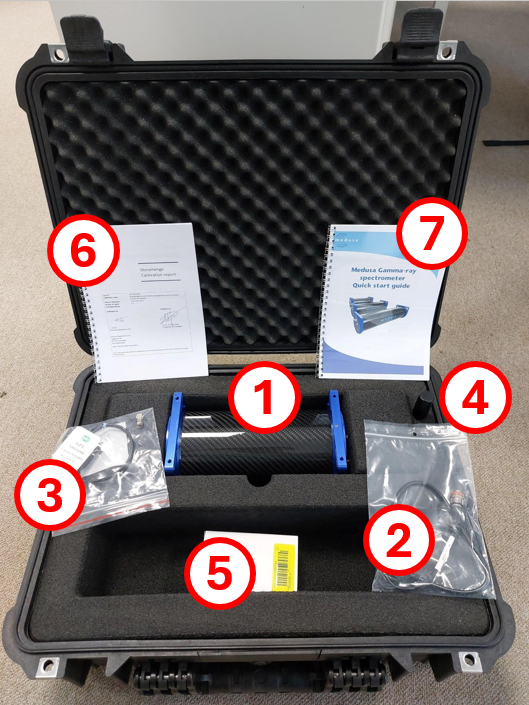

Smaller survey detectors (MS350/700/1000) ​

Contents:

  1. Medusa survey detector
    (This can be an MS-350, MS-700 or MS-1000)
  2. MDC-505 power cable
    Is used to power the detector with a battery via USB-A connection.
  3. GPS-antenna with 50 cm cable
    The cable provides some freedom of placing the antenna somewhere with a clear skyview (if needed).
  4. GPS-antenna stubby
    Has a slightly better accuracy than the cabled antenna, however cannot be placed further from the detector if a better skyview is needed.
  5. USB power adapter
    Universal power adapter that provides a voltage of 5 V via USB-A.
  6. Calibration report
    Report with detector-specific calibration results.
  7. Getting started manual
    Short manual to get you started with the detector.

Weight of the complete package depends on the detector type:

  • MS-350 box: 6 kg
  • MS-700 box: 8 kg
  • MS-1000 box: 10 kg

Dimensions of the box are: 50x39x19 cm

Contents MS350.png

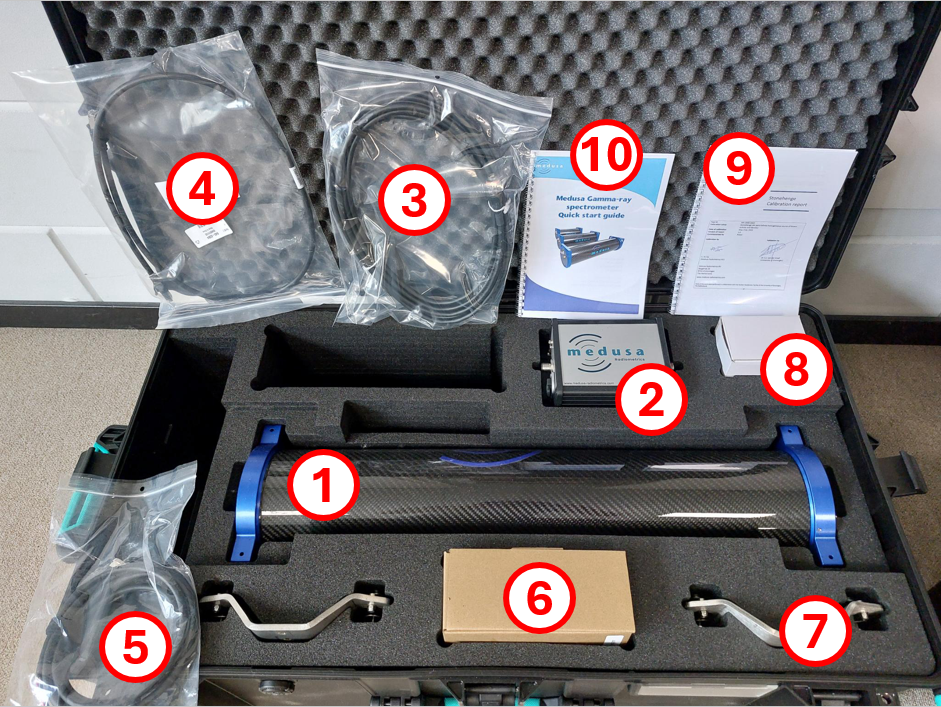

Larger survey detectors (MS2000) ​

Contents:

  1. Medusa survey detector
    Model MS-2000
  2. Connection box
    Provides RS-232 and ethernet access and a separate power input.
  3. MDC-600 communication cable
    5 meter long lemo-to-lemo cable connecting the detector with the connection box.
  4. Ethernet cable
    Establish an ethernet connection via the connection box.
  5. MDC-700 power cable
    Lemo-to-flying leads cable. Provides power to the detector via the connection box.
  6. GPS antenna dome
    GPS antenna with 3 m cable.
  7. Two MSB-20x mounting brackets
    Is used to mount the detector on a survey vehicle.
  8. Generic power supply
    Universal power supply with crocodile clamps.
  9. Calibration report
    Report with detector-specific calibration results.
  10. Getting started manual
    Short manual to get you started with the detector.

Weight of the complete package: 20 kg

Dimensions of the box are: 82x45x29 cm

Contents MS2000.png
