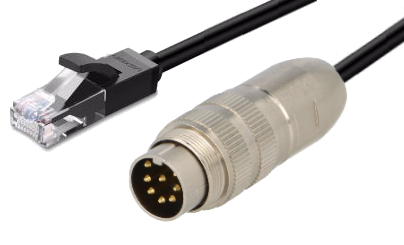

MDC-200 cable

The MDC-200 communication cable is used with PoE (power over ethernet) spectrometers. Using this cable, the spectrometer can directly be connected to a computer or router which support PoE. When no PoE functionality is available, power needs to be required elsewhere. For this a PoE injector can be used, such as the Medusa PoE injector unit.

Connection scheme

Both connectors share the same pin-out. That is, pin 1 of the Lumberg connector is connected to pin 1 of the RJ45 connector, etcetera. Note that pin 4 and pin 5 have the same function, but they are not connected. The same applies for pin 7 and 8.

Pin numbering

	RJ-45 The RJ-45 connector follows the T-568B standard.
	Lumberg, 0332-08 Note: Pin numbering as seen from the solder side.

Pin description

Datasheets

• Lumberg 0332 series.pdf
• Lumberg 0383 dust cap.pdf
• Lumberg 038399 dust cap.pdf
• Lumberg 038899 dust cap.pdf

{}
