MSB-301 assembly instructions

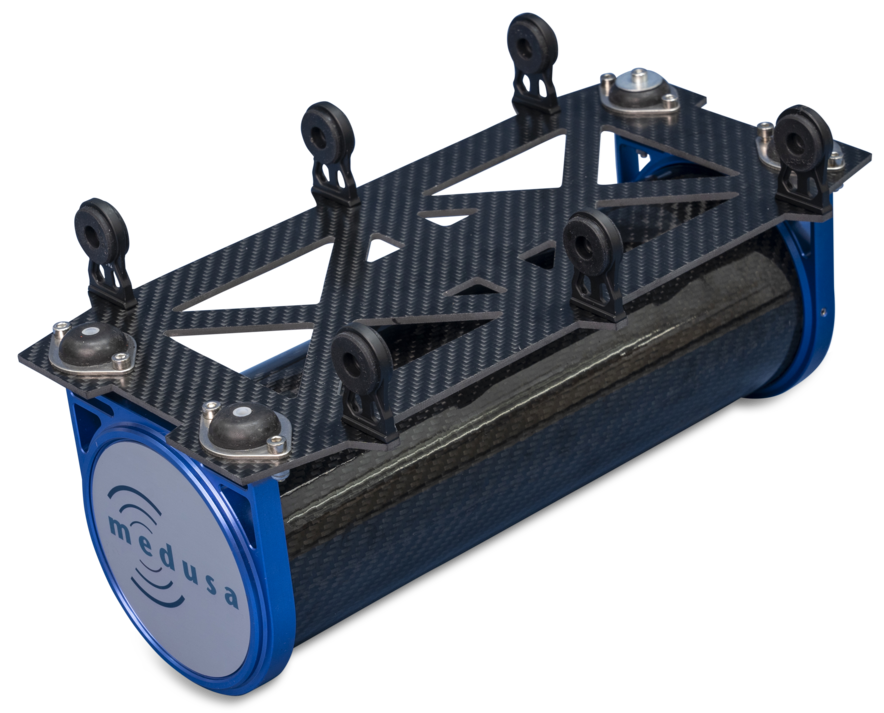

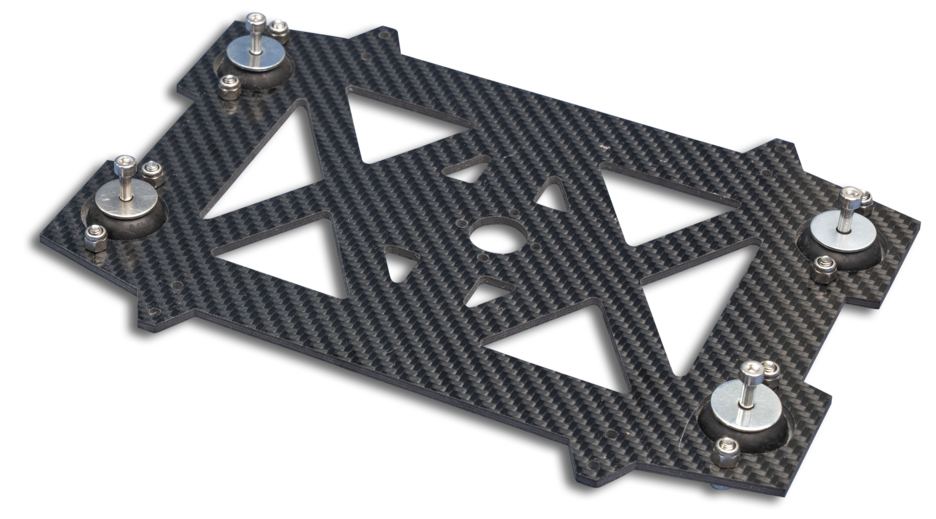

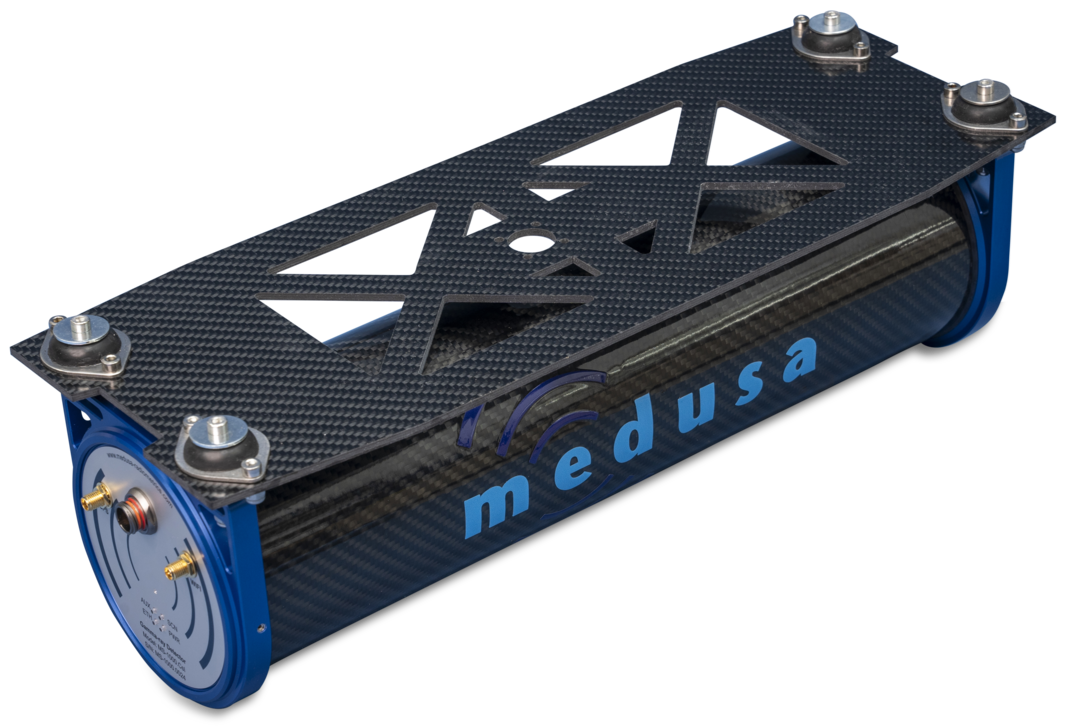

The attached pictures show examples of how the MS-350/700/1000 MSB-301 drone mounts are assembled. This drone mount is a carbon fiber plate that can easily be customized to be attached under many drone frames.
Pictures | Drawing | |
|---|---|---|

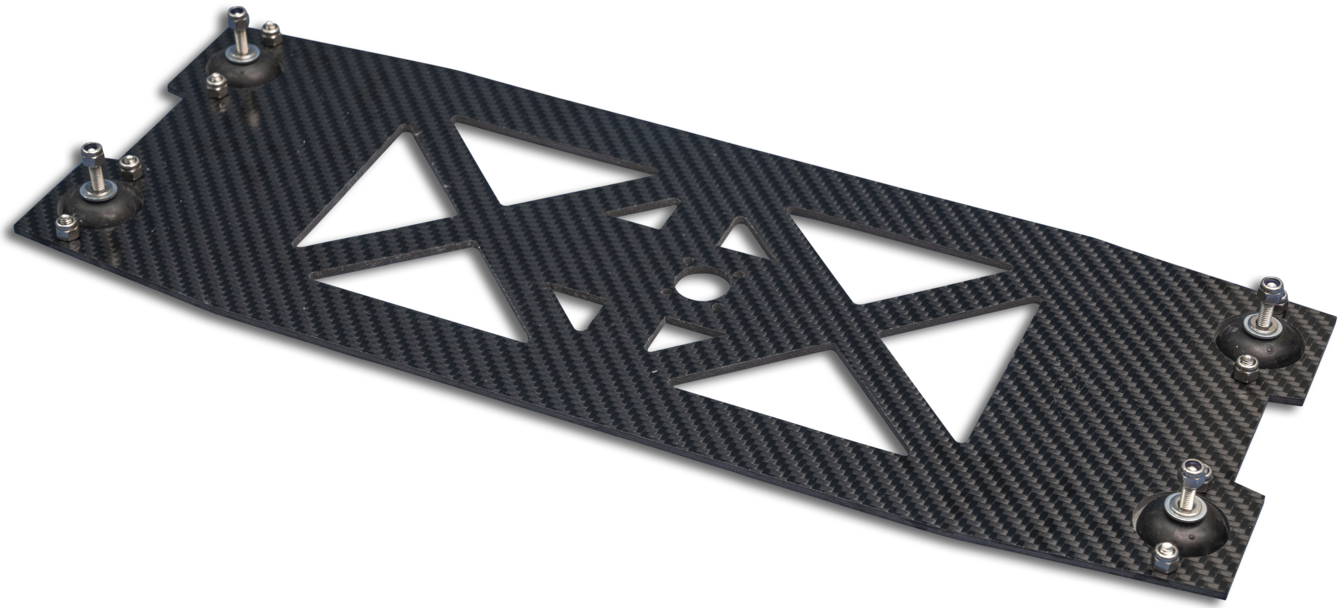

MS-350 plate  |  | |
MS-700 plate  |  | |
MS-1000 plate  |  |
Assembly instructions
 |  |  |
|---|
Quick release
It is possible to add a quick-release system to this plate. This includes a second part that can be attached to the bottom of a drone. These two separate parts can be easily (re-)attached.

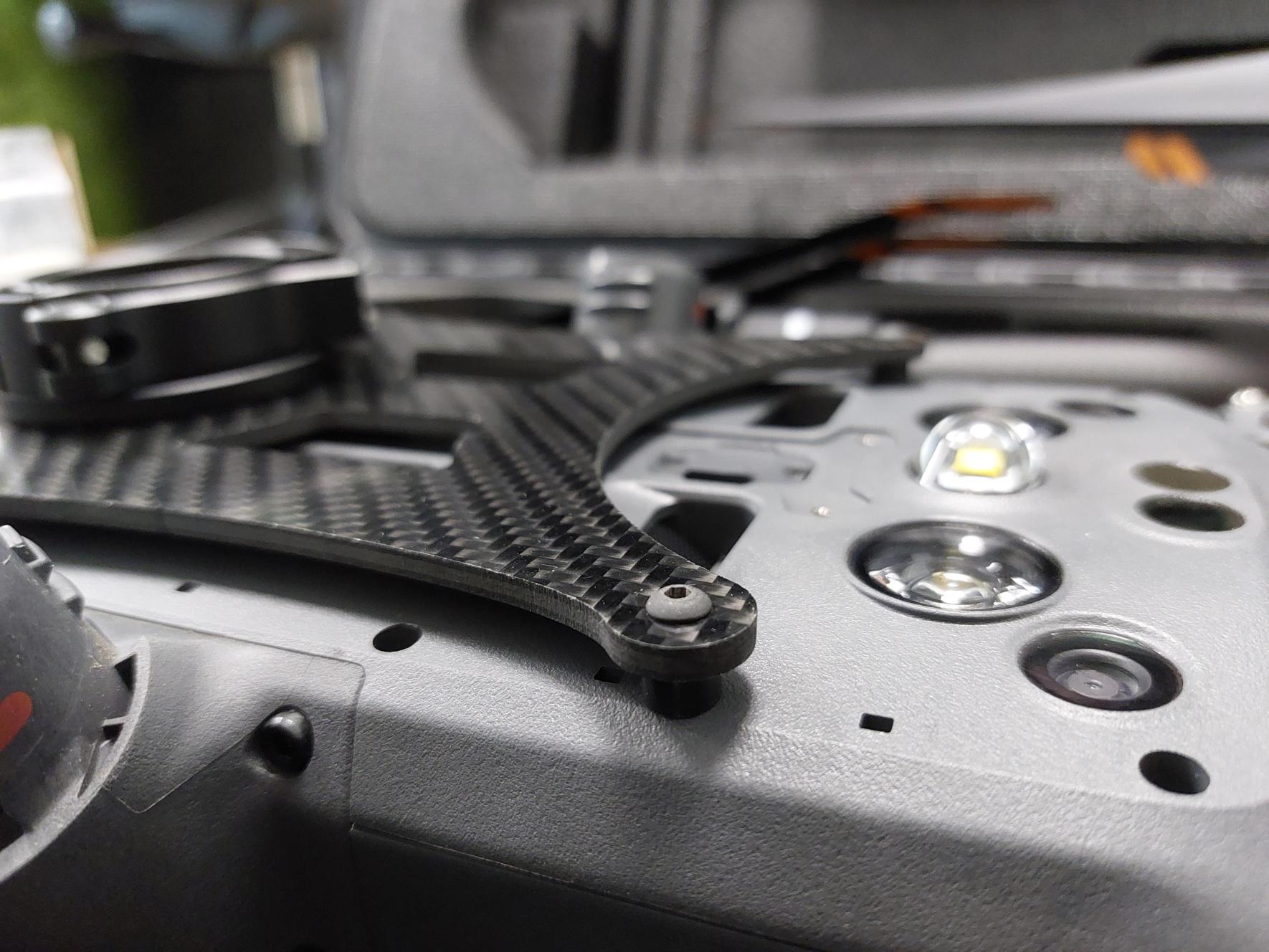

The pictures to the right show how the upper part of the mounting is attached to the bottom of a DJI M300 drone.

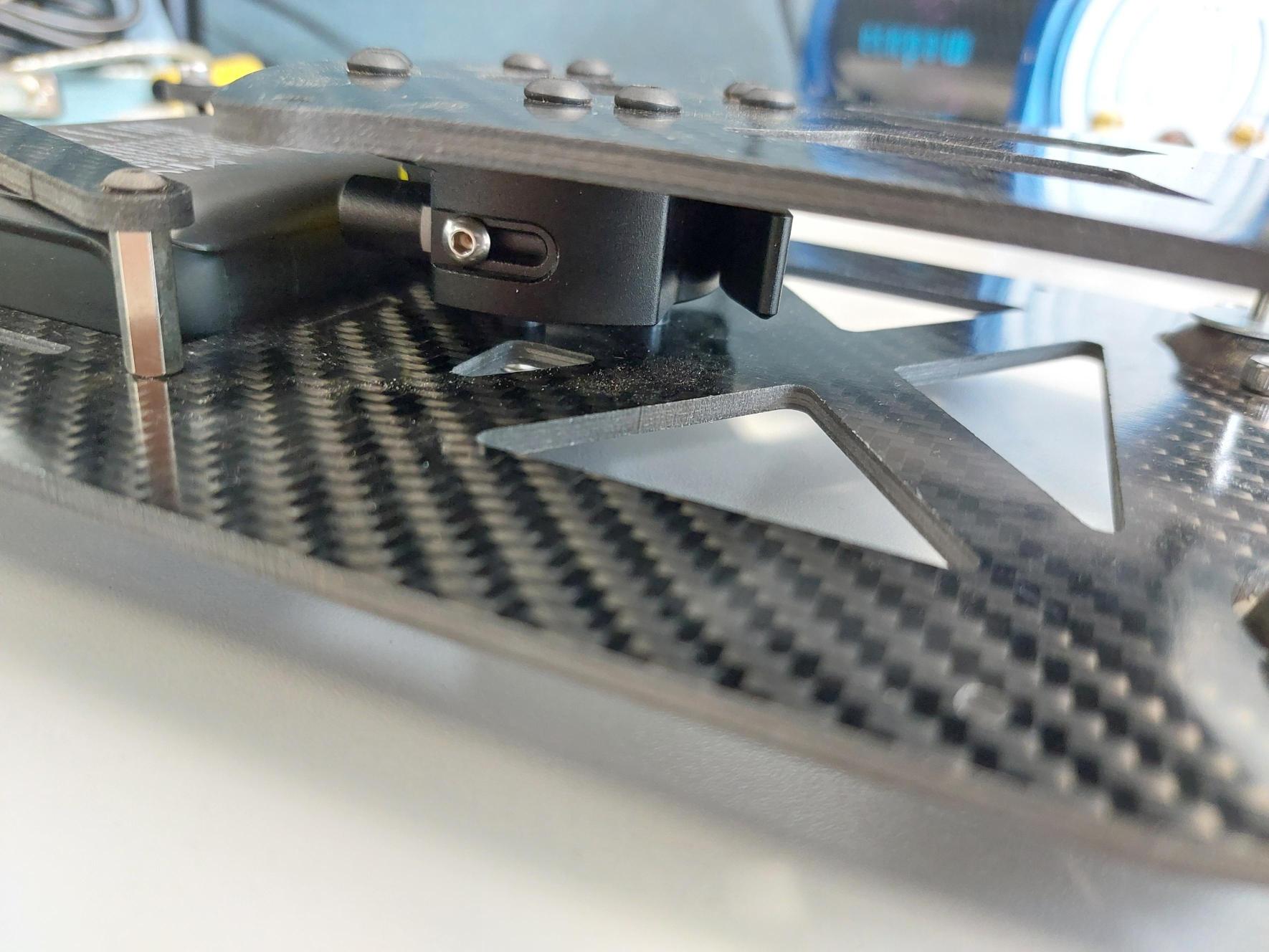

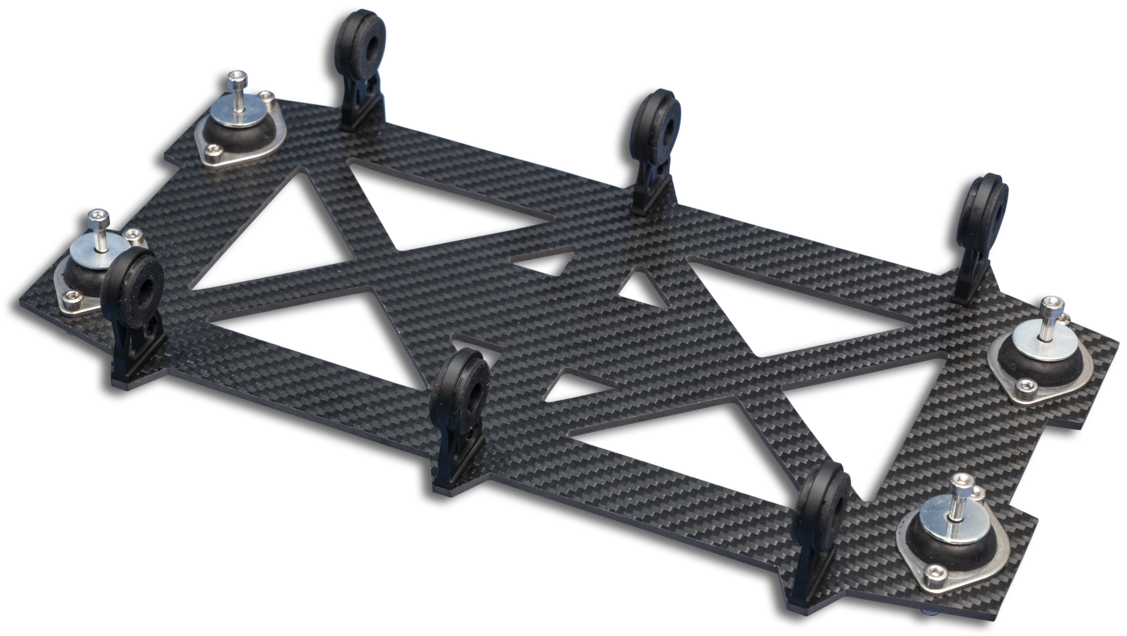

The two parts of the mounting plate attached by the quick-release system

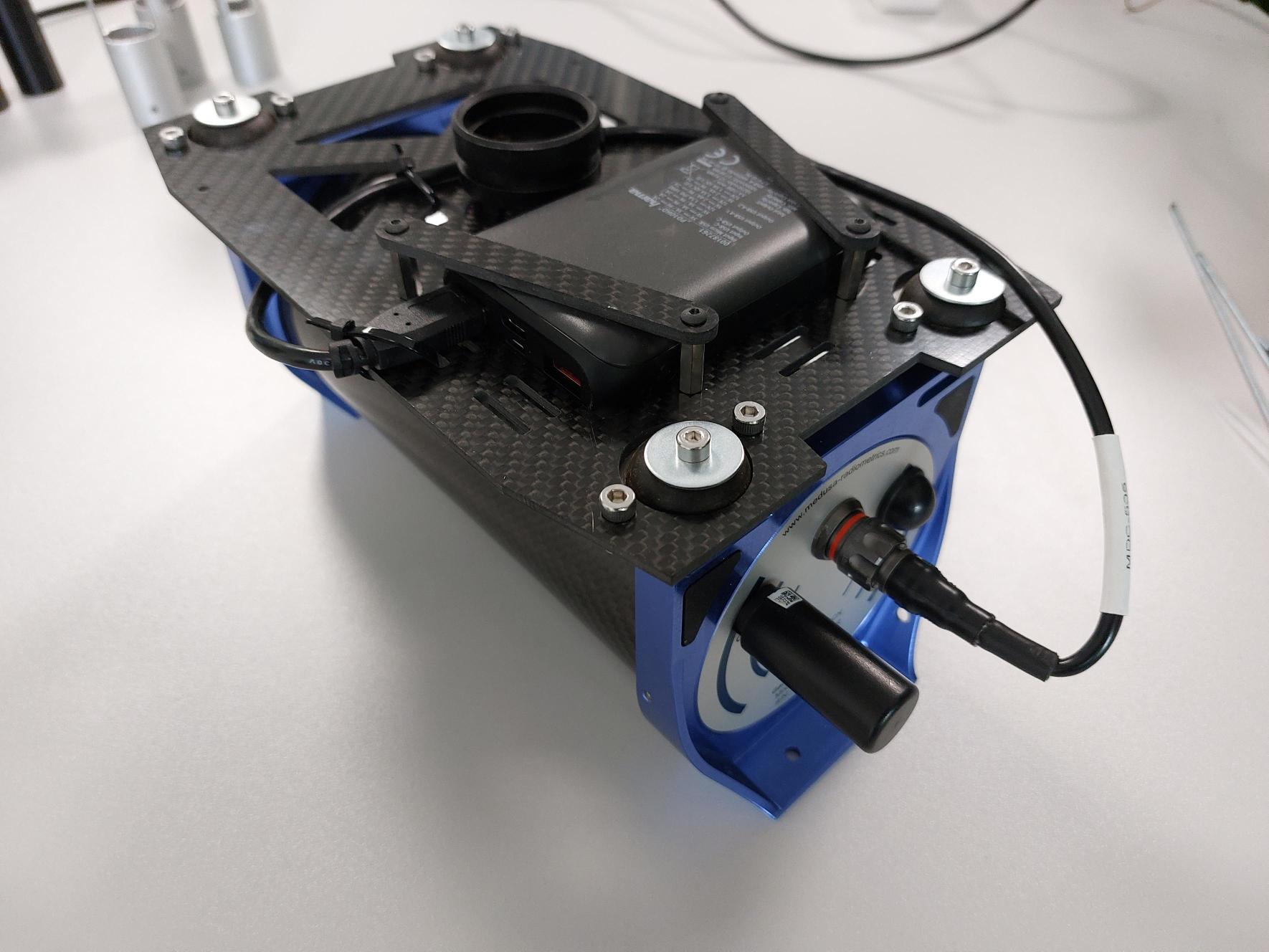

Mounting plate with an outfitter area for a power bank on an MS350 detector

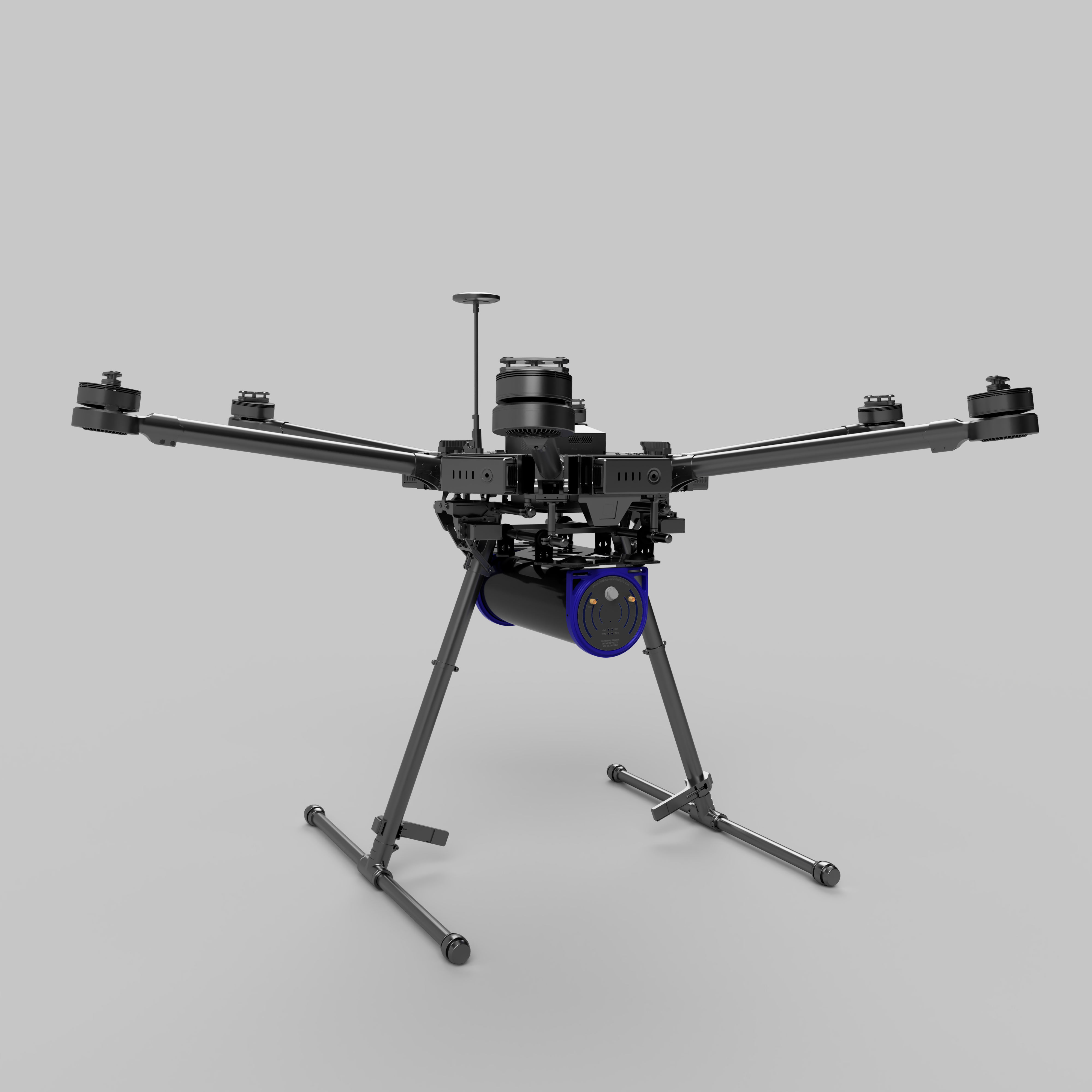

The picture below show how the detector is mounted under a DJI-M600 frame or fitted with a quick-release interface.
.png?inst-v=91ba5ba6-579e-4ab1-9314-483fab53e696)
