Technical data

These pages contain info on the of gammaray spectrometers built by Medusa. The table below summarizes the components that are used in these systems.

Sensor type	Latest code	Housing	MCA	Cables	Pic
MS-4000

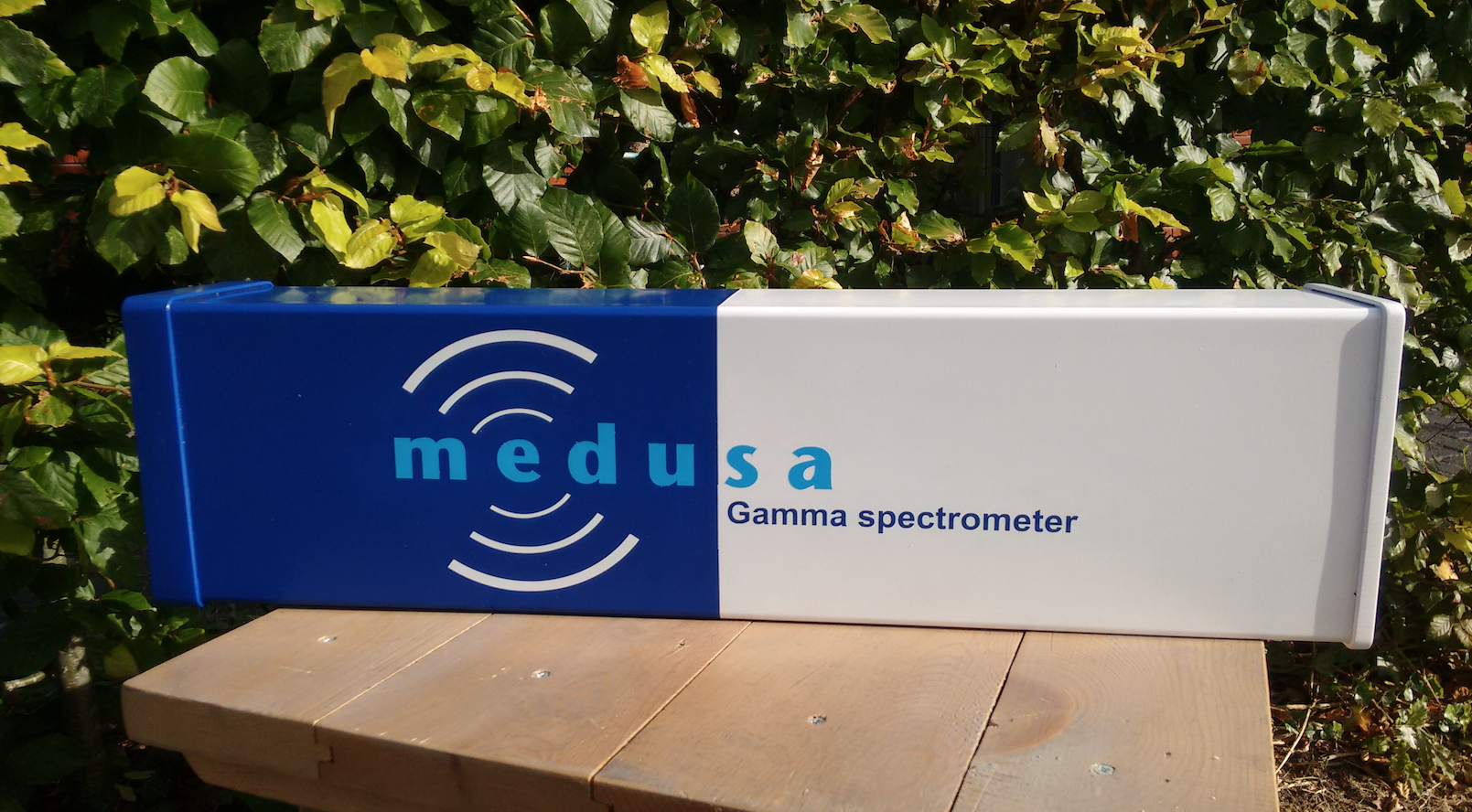

MS-4000	2016-T029.010	Alu box	vMCA
MS-4000	2017-T039.012	Alu box	mMCA V2	MDC-40x
MS-2000
MS-2000	2016-T206.001	Alu tube	Base527	MDC-200

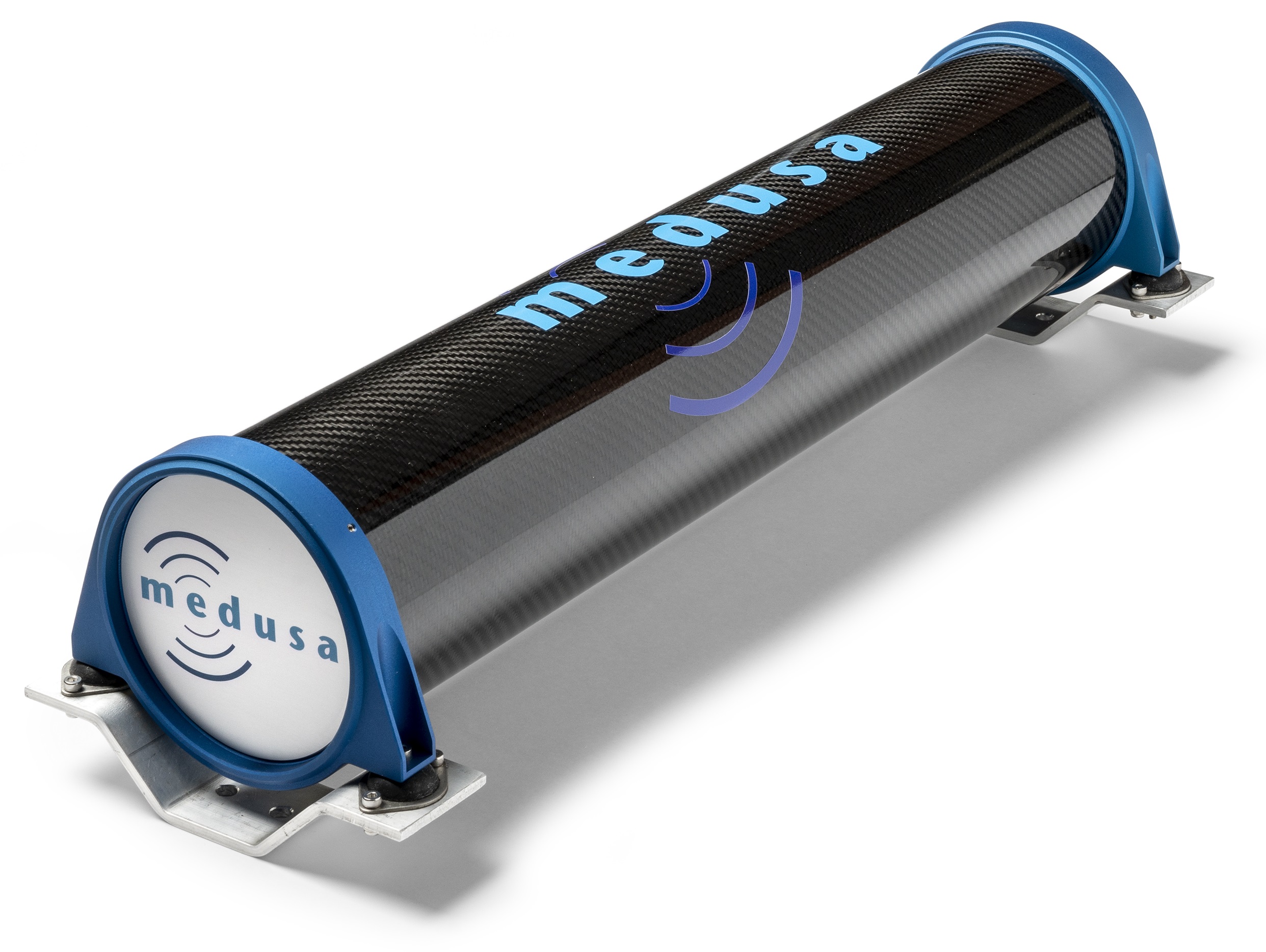

MS-2000	2016-T037.007	Carbon tube V1	Base527	MDC-200
MS-2000	2017-T043.024	Carbon tube V1	mMCA V1	MDC-300

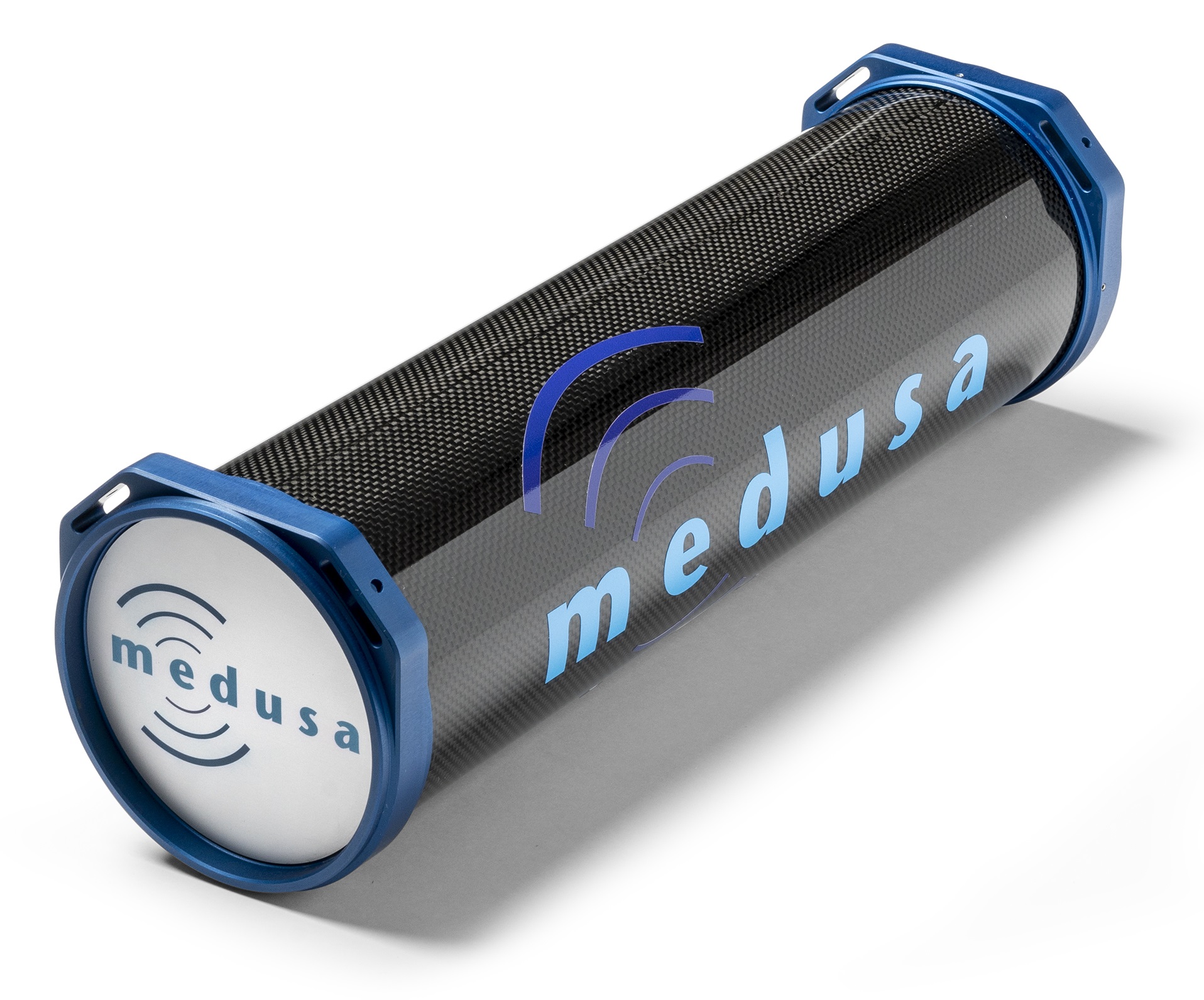

MS-2000	Active	Carbon tube V2	mMCA V2	MDC-40x
MS-1200

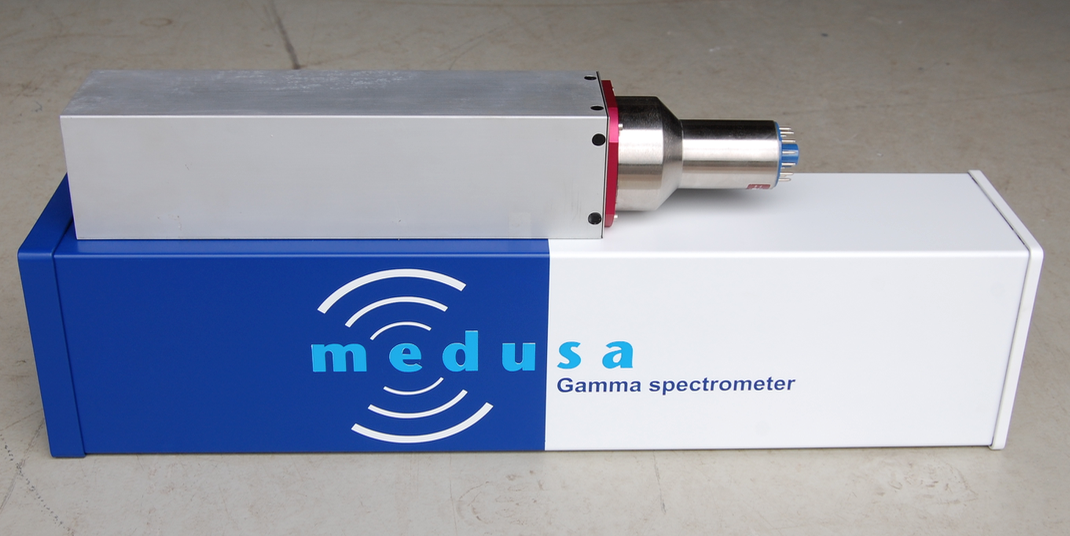

MS-1200	2014-T010.003	Alu box	vMCA
MS-1200	2016-T024.004	Alu box	Base527	MDC-100
MS-1200	Active	Carbon tube V2	mMCA V2	MDC-40x
MS-1000

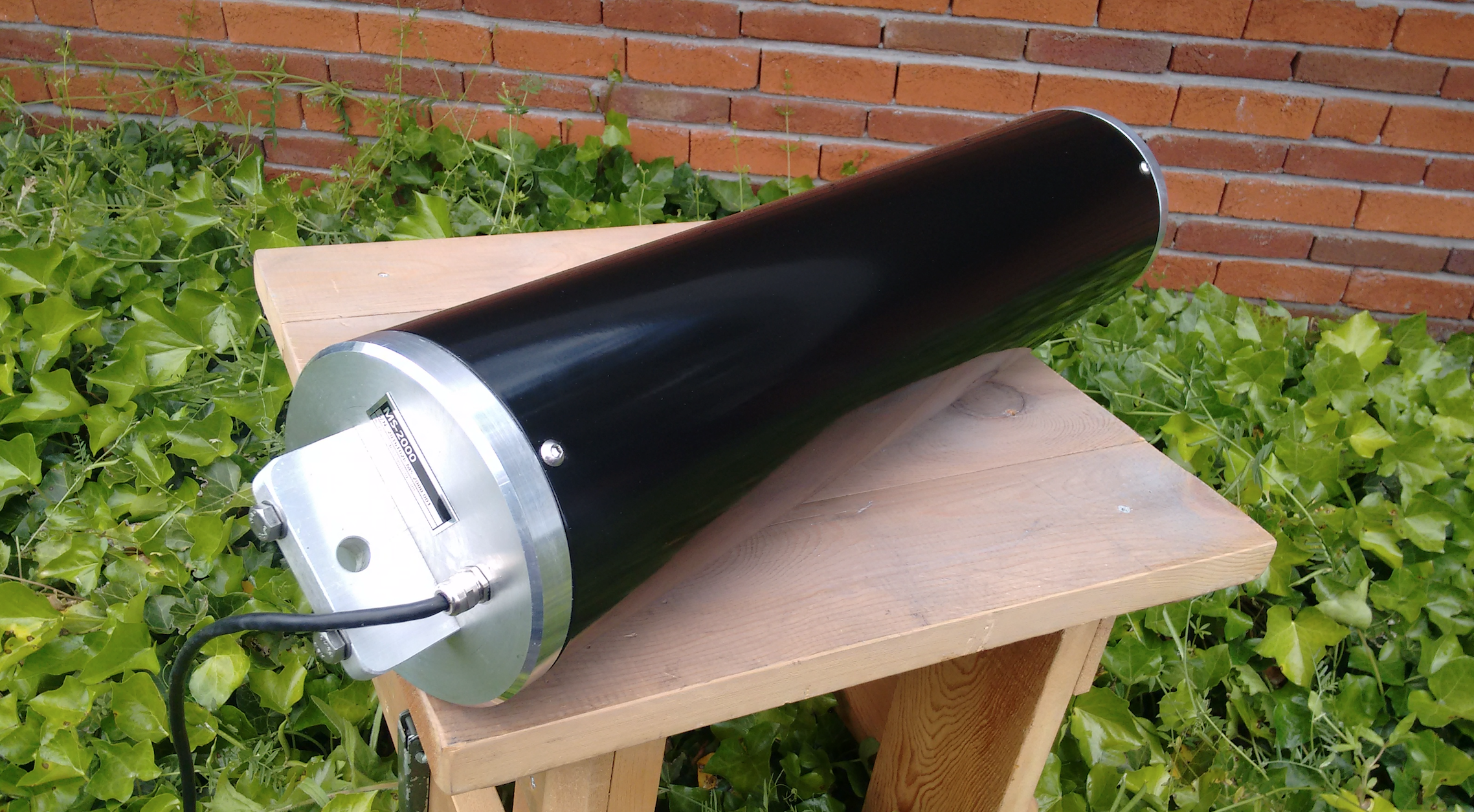

MS-1000		Carbon tube V1	mMCA V1	MDC-300
MS-1000		Carbon tube V2	mMCA V2	MDC-40x
MS-700
MS-700	Active	Carbon tube V2	mMCA V2	MDC-40x
MS-350

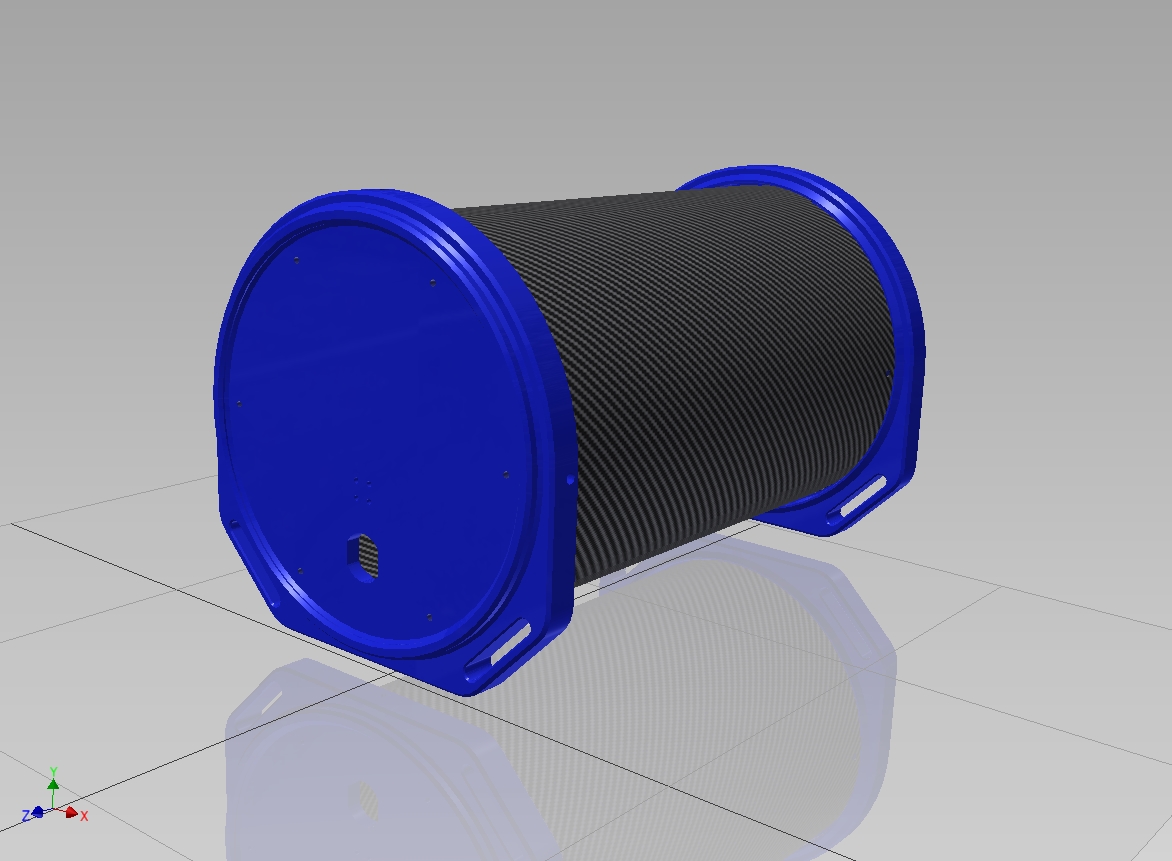

MS-350	Active	Carbon tube V2	mMCA V2	MDC-40x
