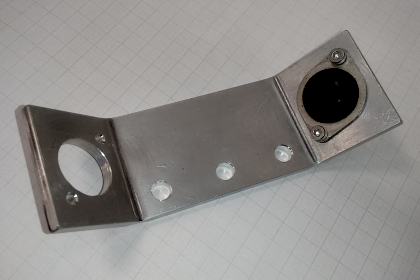

MSB-101 mounting brackets

These MSB-100 brackets can be used to mount the carbon Medusa MS-1000, MS-1200 and MS-2000 spectrometers on a quad, drone or other vehicle. It can be used with spectrometers numbered up to 2017T043.024. Other mounting options can be found here.

For mounting the rubbers onto a vehicle, it is recommended to use stainless steel M4 bolts with a 16mm (nylon) spacer between rubber and bolt. A usable spacer is produced by duratool, article number DT000343. Make sure to use a bolt with a wide head, or use an additional washer.

Latest code	2017T043.024

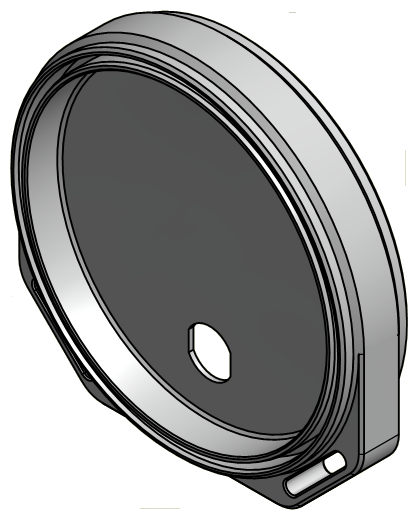

Aluminium cover
Rubbers		'Instrument' mounts Produced by Flexico Article number 039 18 023 40 shore
Drawing	MSB-101.pdf
