Connection box

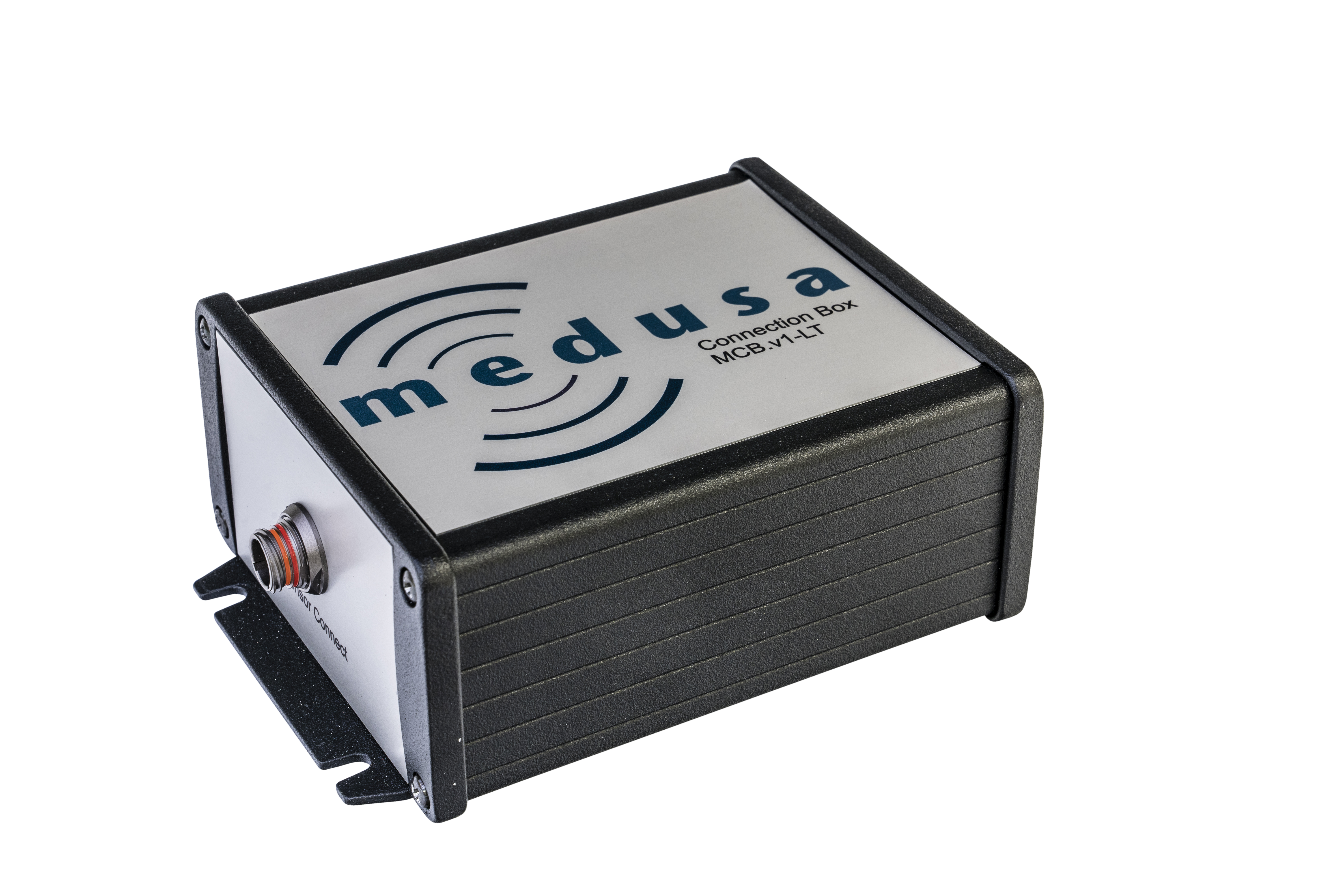

The connection box provides RS-232 and ethernet access and a separate power input. This box can be used on any Medusa detector with a Lemo detector, such as detectors that use an MDC-40x cable, an MDC-50x cable, or an MDC-60x cable. This connection box is the default method of providing access to the sensors for the MS-2000 and is available on request for the MS-1000, MS-700, and MS-350. In addition to providing power to the sensor, this connection box can connect to the sensor by using ethernet or use the RS-232 interface of the sensor.
Connection box inputs
Connection | Image | Connector type on box | Cable to connect |
|---|---|---|---|

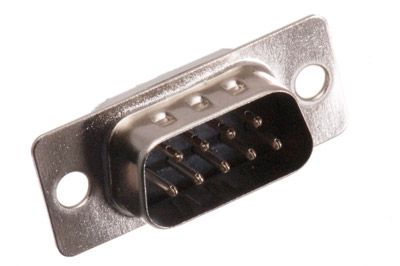

RS-232 |  | Male DB9 connector | Female DB9 serial cable |

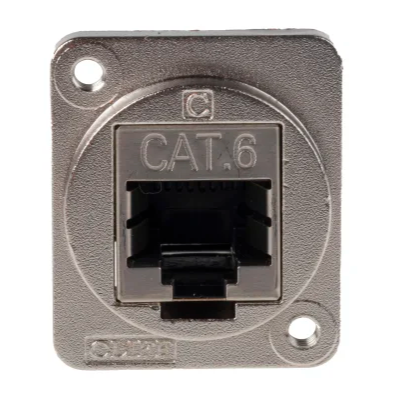

Ethernet |  | Female RJ45 connector | standard RJ45 cable |

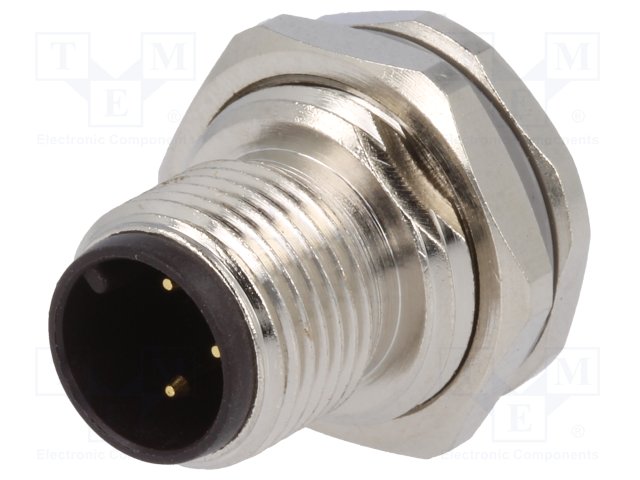

Power |  | TE Connectivity T4130012031-000 |
Connection box output
Connection | Image | Connector type on box | Cable to connect |
|---|---|---|---|

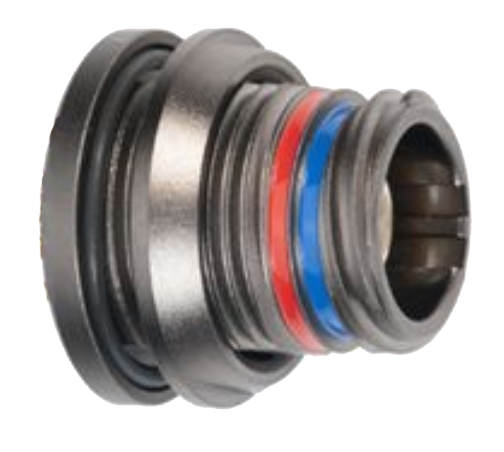

Lemo |  | Lemo HET.1M.308.XLDP |
